LG 49UH5N-M 49″ 4K UHD Signage

UHD Signage Display with
LG webOS Platform and Advanced Security

* All images in this page are for illustrative purposes only.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

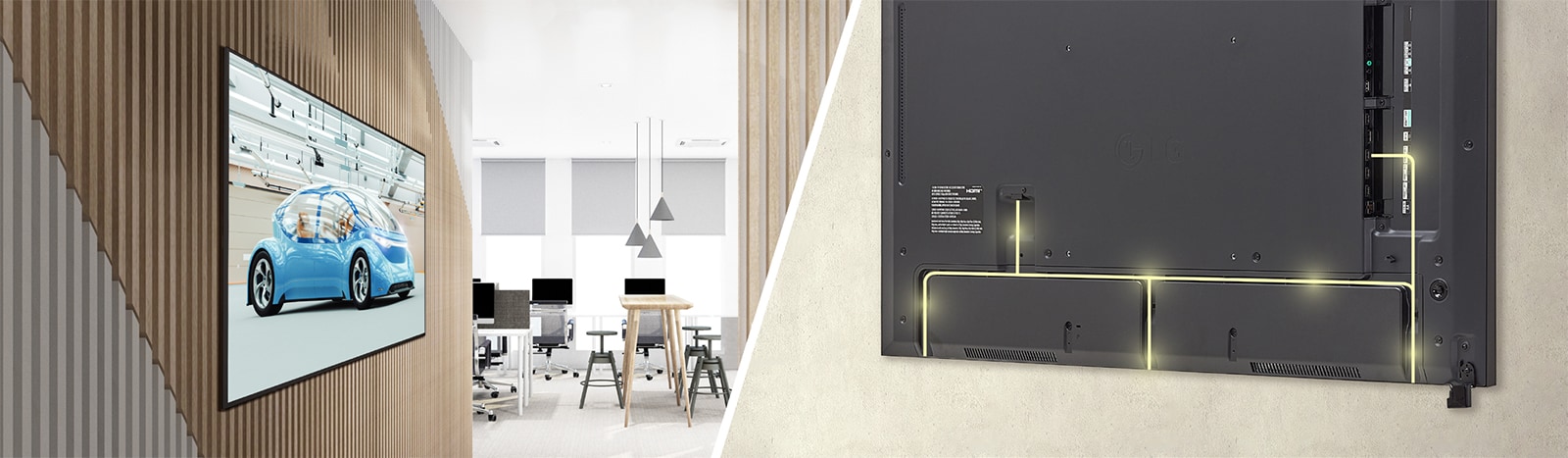

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features

The UH5N-M provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Panel

Screen Size: 49″
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16 : 9
Native Resolution: 3,840 X 2,160 (4K UHD)
Refresh Rate: 60 Hz
Brightness (Typ.): 500 nit
Contrast Ratio: 1,100 : 1
Dynamic CR: 1,000,000 : 1
Color Gamut: BT709 95%
Viewing Angle (H × V): 178 × 178
Color Depth: 1.07 Billion Colors (10 bit (D))
Response Time: 8 ms (T/R), 10 ms (T/F)
Surface Treatment (Haze): 28%
Life Time (Min.): 50,000 Hrs
Operation Hours (Hours / Days): 24 / 7
Portrait / Landscape: Yes / Yes

Mechanical Specification

Bezel Color: Black
Bezel Width:
- 8.9 mm (T/R/L)
- 12.9 mm (B)
Weight (Head): 13.6 kg
Packed Weight: 16.1 kg
Monitor Dimensions (W × H × D): 1,095.6 × 630.8 × 29.7 mm (without IR)
Carton Dimensions (W × H × D): 1,215 × 736 × 152 mm
Handle: No
VESA™ Standard Mount Interface: 300 × 300 mm

Key Features

Internal Memory: eMMC 16 GB
Wi-Fi & Bluetooth
Sensors:
- Temperature Sensor
- Auto Brightness Sensor (External IR)
- Acceleration (Gyro) Sensor
Local Key Operation
webOS 6.0
Local Contents Scheduling
Group Manager
USB Plug & Play
Fail Over
Booting Logo Image
No Signal Image
RS-232C Sync
Local Network Sync
PIP, PBP (4)
Screen Share
Video Tag (4)
Play via URL
Screen Rotation
External Input Rotation
Gapless Playback
Tile Mode Setting (Max. 15 × 15)
Setting Data Cloning
SNMP
ISM Method
Auto Set ID
Status Mailing
Control Manager
Cisco Certification
Crestron Connected
Smart Energy Saving
PM Mode
Wake on LAN
Network Ready
Beacon
HDMI-CEC
SI Server Setting
webRTC
Pro:Idiom

Environment Conditions

Operation Temperature: 0 °C to 40 °C
Operation Humidity: 10% to 80%

Power

Power Supply: AC 100-240 V ~, 50/60 Hz
Power Type: Built-In Power
