LG 75UH5N-M 75″ 4K UHD Signage

Large UHD Signage Display with Slim Design

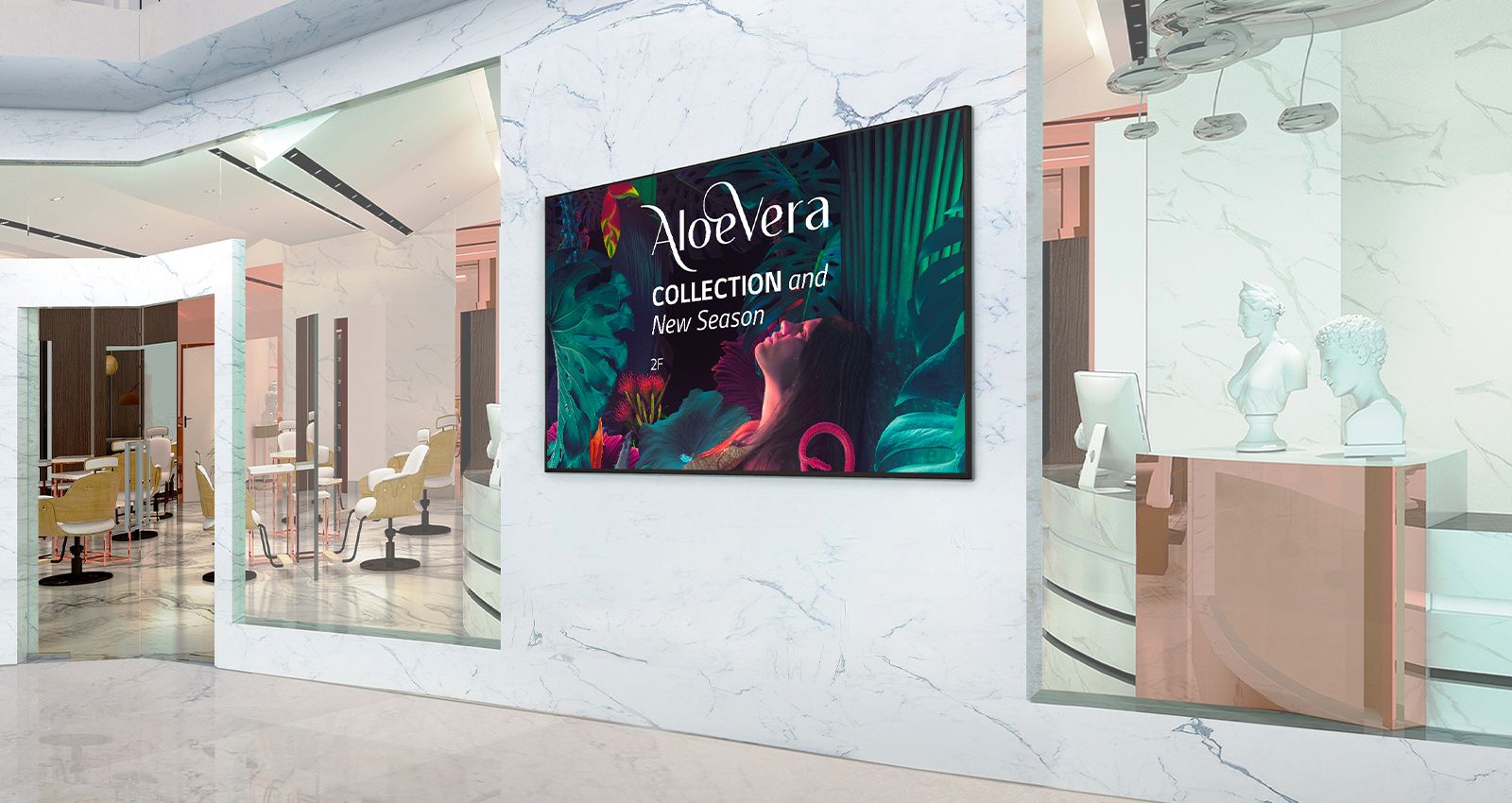

Signage installed on the interior walls of the shopping mall displays advertisements vividly.

* All images in this page are for illustrative purposes only.

Eye-catching Large Screen

A large screen effectively captures people’s attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.

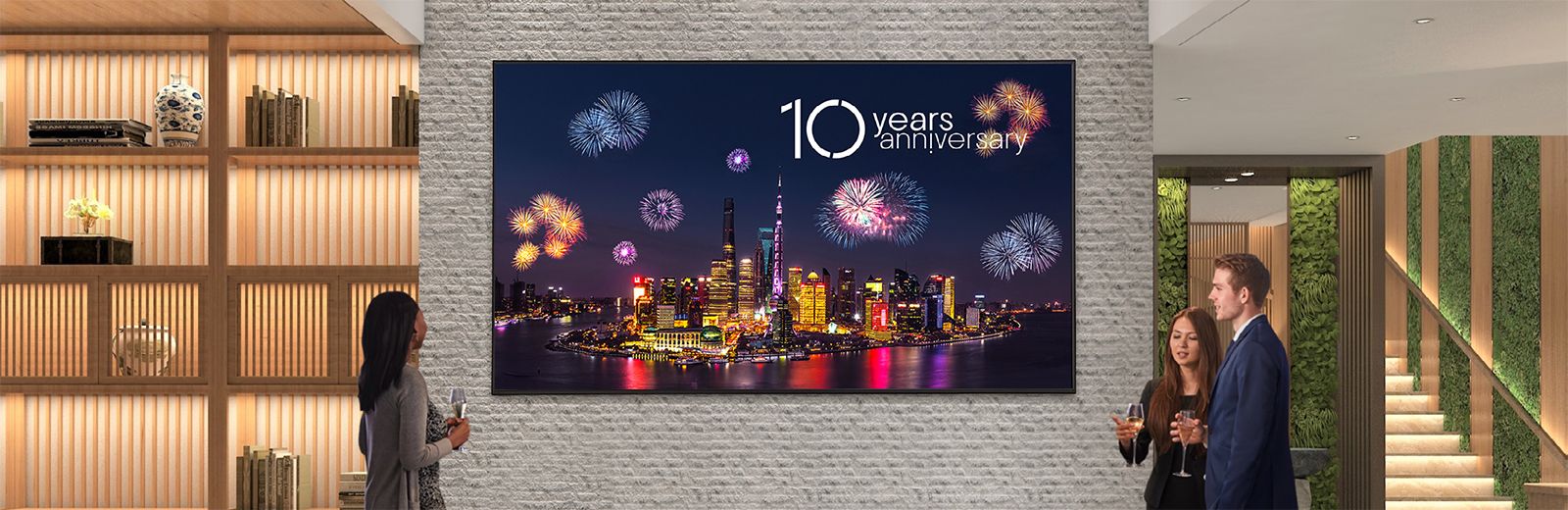

The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Slim Depth with Even Bezel

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

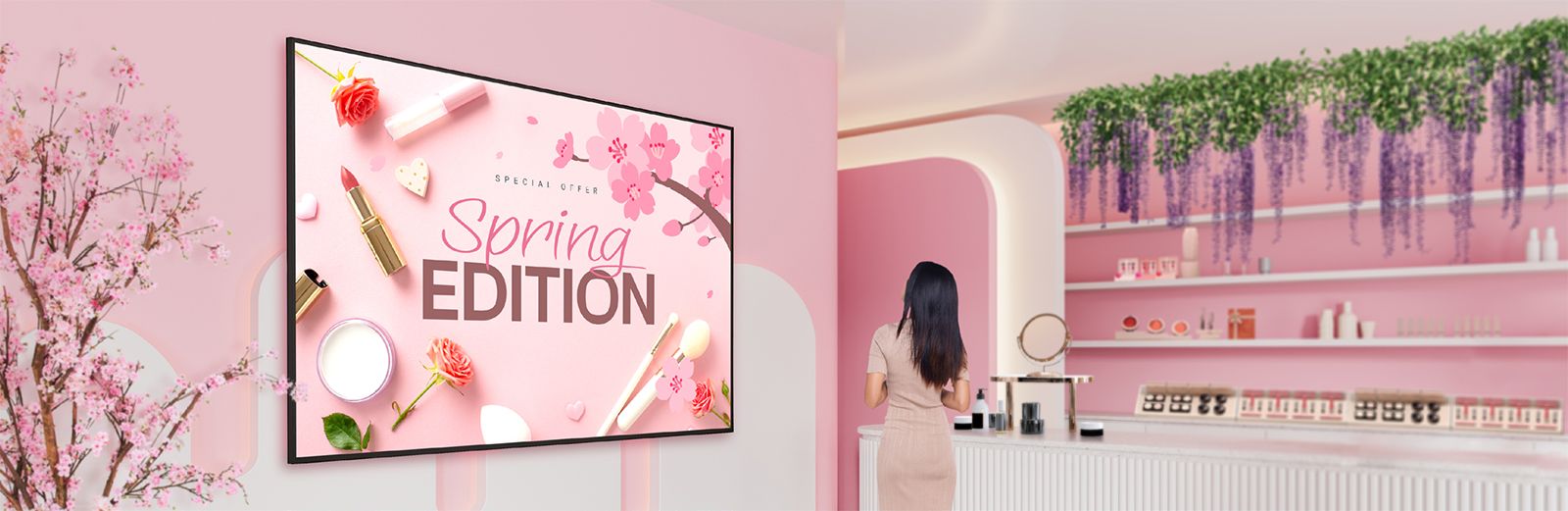

In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior.

Versatile Operation with
Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

A number of tasks can be done at the same time with the intuitive UI.

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

The UH5N-M has conformal coating to protect the display even in salty or humid environments.

Enhanced Security Features

The UH5N-M provides advanced security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

The UH5N-M provides security features to protect important data from external access or attacks.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

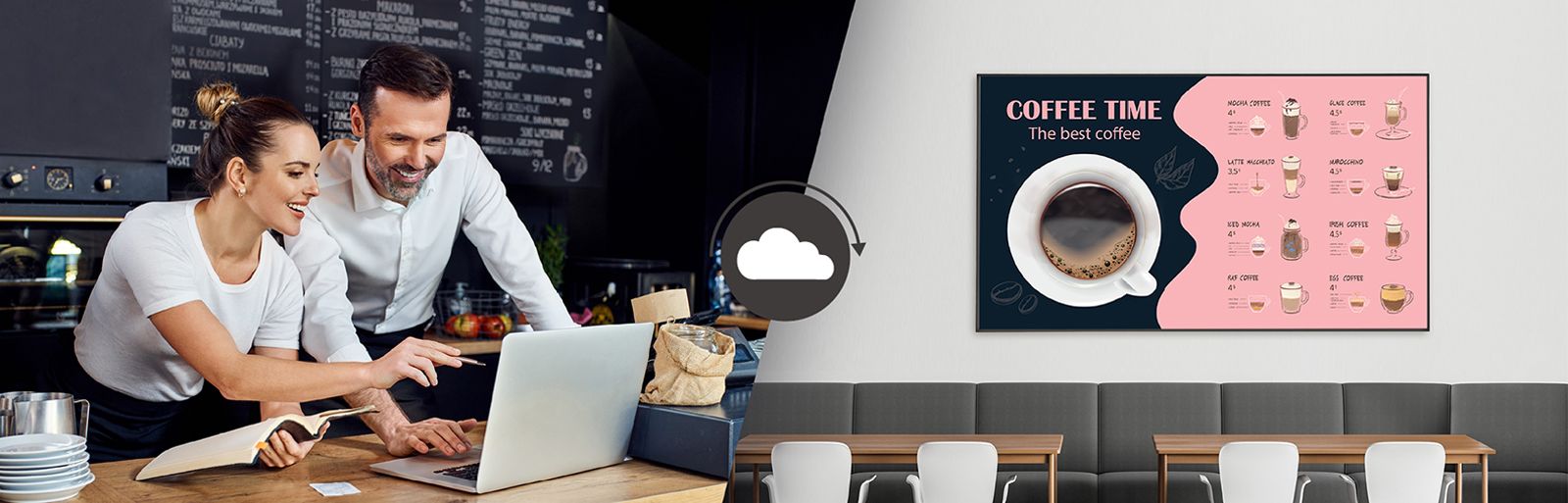

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Panel

Screen Size: 75″
Panel Technology: ADS
Back Light Type: Edge
Aspect Ratio: 16 : 9
Native Resolution: 3,840 X 2,160 (4K UHD)
Refresh Rate: 60 Hz
Brightness (Typ.): 500 nit
Contrast Ratio: 1,200 : 1
Dynamic CR: 1,000,000 : 1
Color Gamut: BT709 95%
Viewing Angle (H × V): 178 × 178
Color Depth: 8bit(D), 1.07 Billion Colors
Response Time: 8ms (G to G)
Surface Treatment (Haze): 25%
Life Time (Min.): 50,000 Hrs
Operation Hours (Hours / Days): 24 / 7
Portrait / Landscape: Yes / Yes

Mechanical Specification

Bezel Color: Black
Bezel Width: 12.9 mm (Even)
Weight (Head): 35.7 kg
Packed Weight: 44 kg
Monitor Dimensions (W × H × D): 1,679.5 x 958.7 x 29.7 mm (without IR, Handle)
Carton Dimensions (W × H × D): 1,820 x 1,115 x 200 mm
Handle: Yes
VESA™ Standard Mount Interface: 600 × 400 mm

Key Features

Internal Memory: eMMC 16 GB
Wi-Fi/BT
Sensors:
- Temperature Sensor
- Auto Brightness Sensor (External IR)
- Acceleration (Gyro) Sensor
Local Key Operation
webOS 6.0
Local Contents Scheduling
Group Manager
USB Plug & Play
Fail Over
Booting Logo Image
No Signal Image
RS-232C Sync
Local Network Sync
PIP, PBP (4)
Screen Share
Video Tag (4)
Play via URL
Screen Rotation
External Input Rotation
Gapless Playback
Tile Mode Setting (Max. 15 × 15)
Setting Data Cloning
SNMP
ISM Method
Auto Set ID
Status Mailing
Control Manager
Cisco Certification (TBD)
Crestron Connected® (Network-based control)
Smart Energy Saving
PM Mode
Wake on LAN
Network Ready
BEACON
HDMI-CEC Compatibility (may differ by equipment)
SI Server Setting
webRTC
Pro:Idiom

Environment Conditions

Operation Temperature: 0 °C to 40 °C
Operation Humidity: 10% to 80%

Power

Power Supply: AC 100-240 V ~, 50/60 Hz
Power Type: Built-In Power
