LG CLOi ServeBot (Drawer type), front view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), rear view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), left side view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), right side view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), front view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), rear view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), left side view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type), right side view, CLOi ServeBot (Drawer type)

LG CLOi ServeBot (Drawer type)

FSALM autonomous driving
Secure driving for safer service
Elevator Safety Certification
Smart multi-point delivery
Automatic lock function

Overview Specification

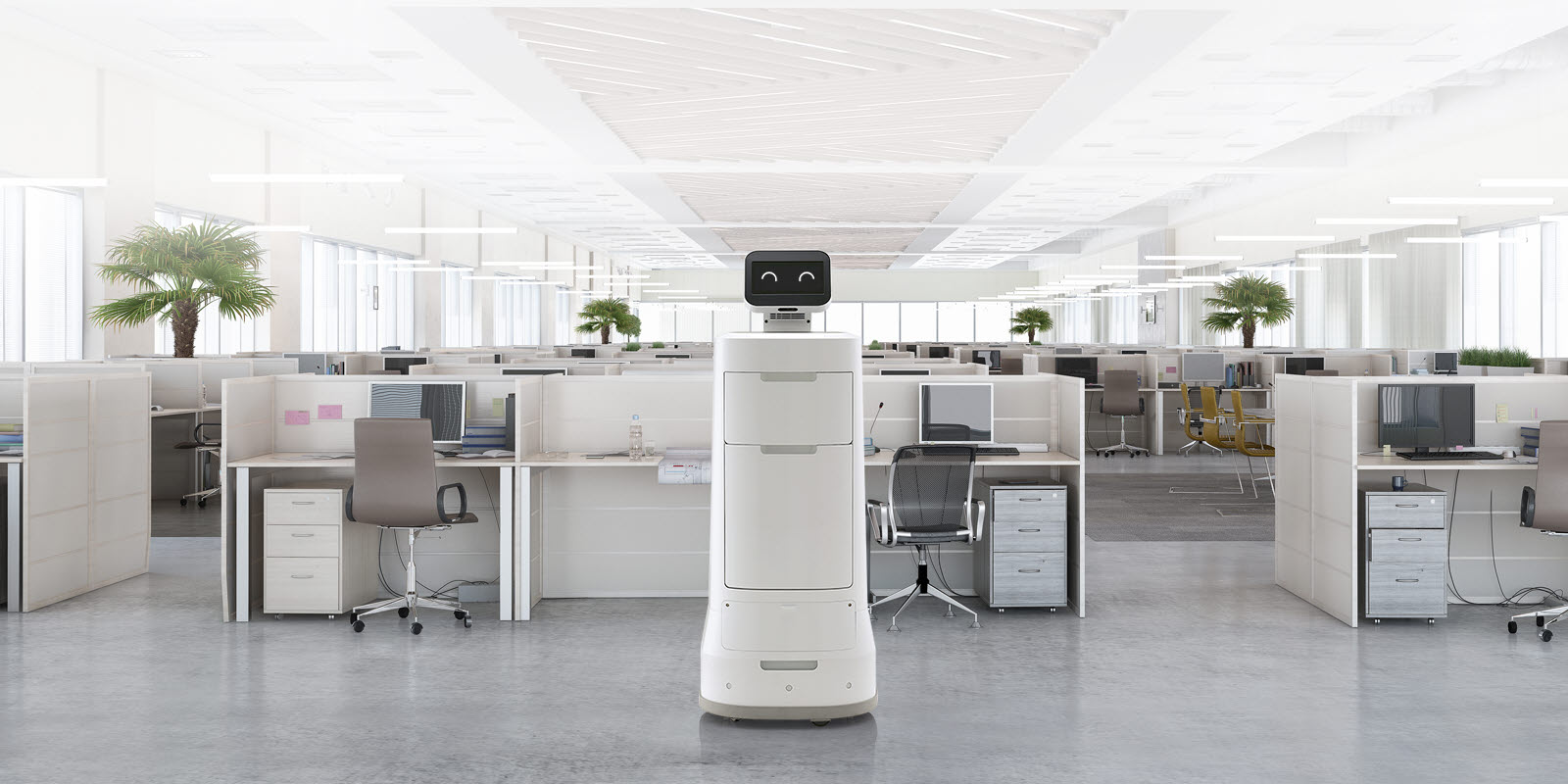

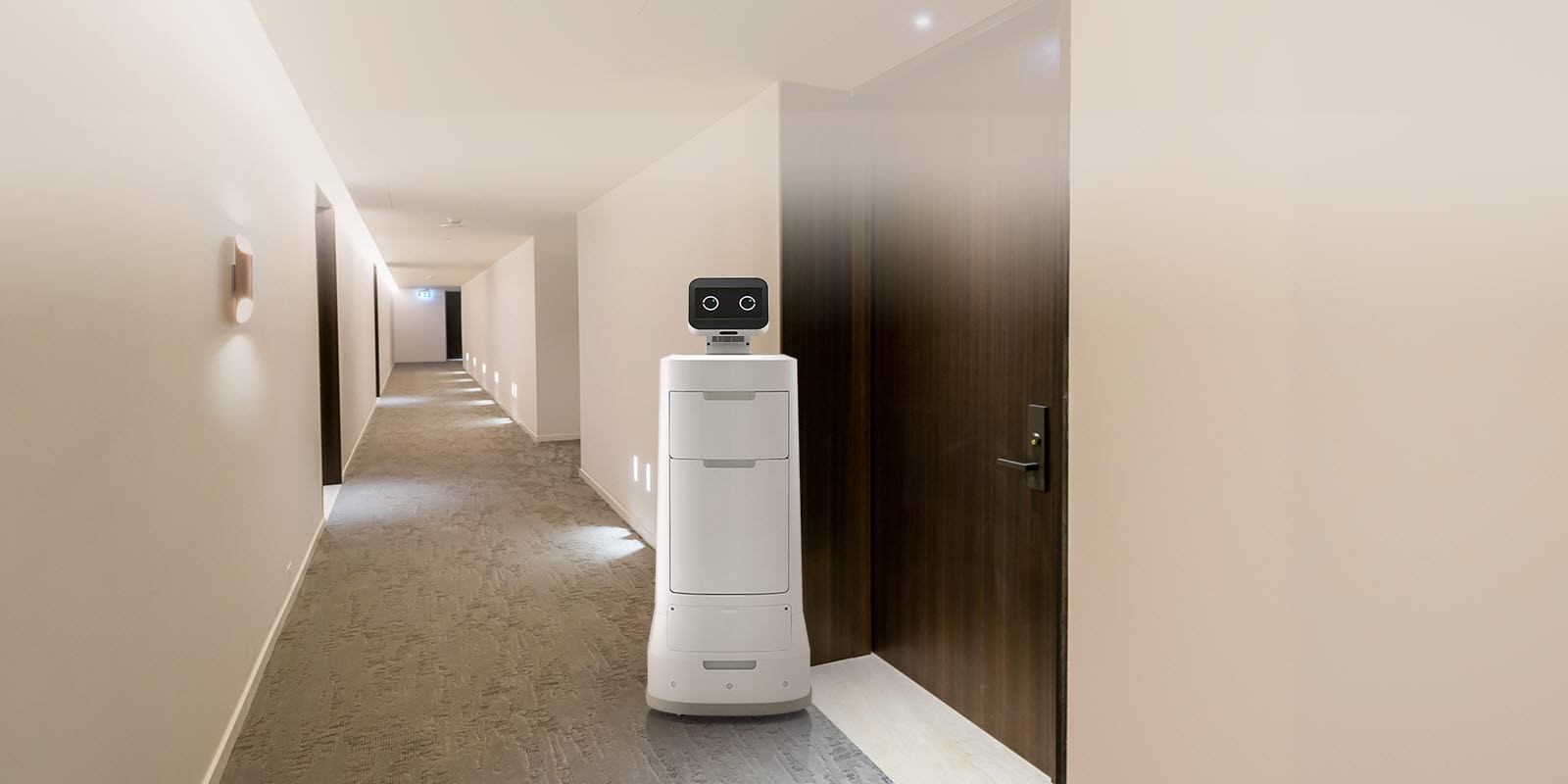

Why Choose CLOi ServeBot?

Smart delivery technology capable of autonomous operation and managing logistics within large areas.

Smart delivery technology capable of autonomous operation and managing logistics within large areas.

Why Choose CLOi ServeBot?

Smart delivery technology capable of autonomous operation and managing logistics within large areas.

Smart delivery technology capable of autonomous operation and managing logistics within large areas.

Why Choose CLOi ServeBot?

Smart delivery technology capable of autonomous operation and managing logistics within large areas.

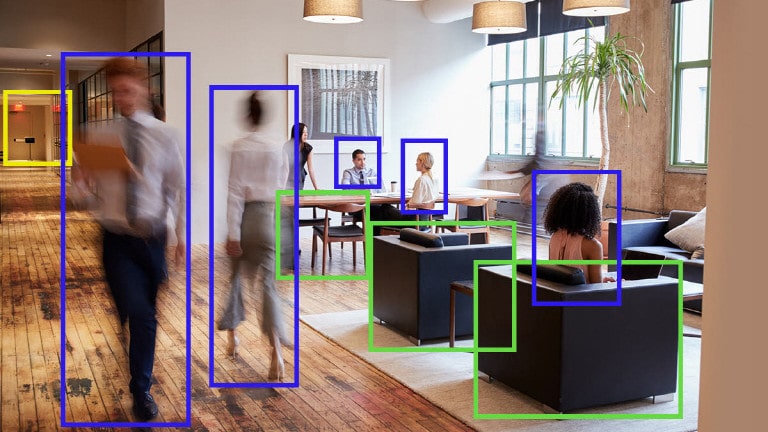

Drives with precision by utilizing the closest technology to a human eye-a 3D camera and LiDAR sensor-to detect space and determine the best route.

Accurate obstacles recognition and path identification

Drives with precision by utilizing the closest technology to a human eye-a 3D camera and LiDAR sensor-to detect space and determine the best route.

– VSLAM Method : Vision Simultaneous Localization and Mapping

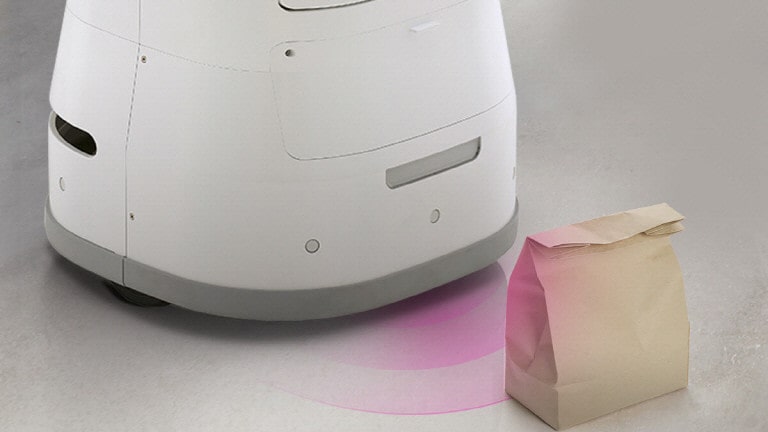

Equipped with a 3D camera to detect low obstacles and a short-range ToF sensor to avoid small or sudden obstacles while driving.

Secure driving for safer service

Equipped with a 3D camera to detect low obstacles and a short-range ToF sensor to avoid small or sudden obstacles while driving.

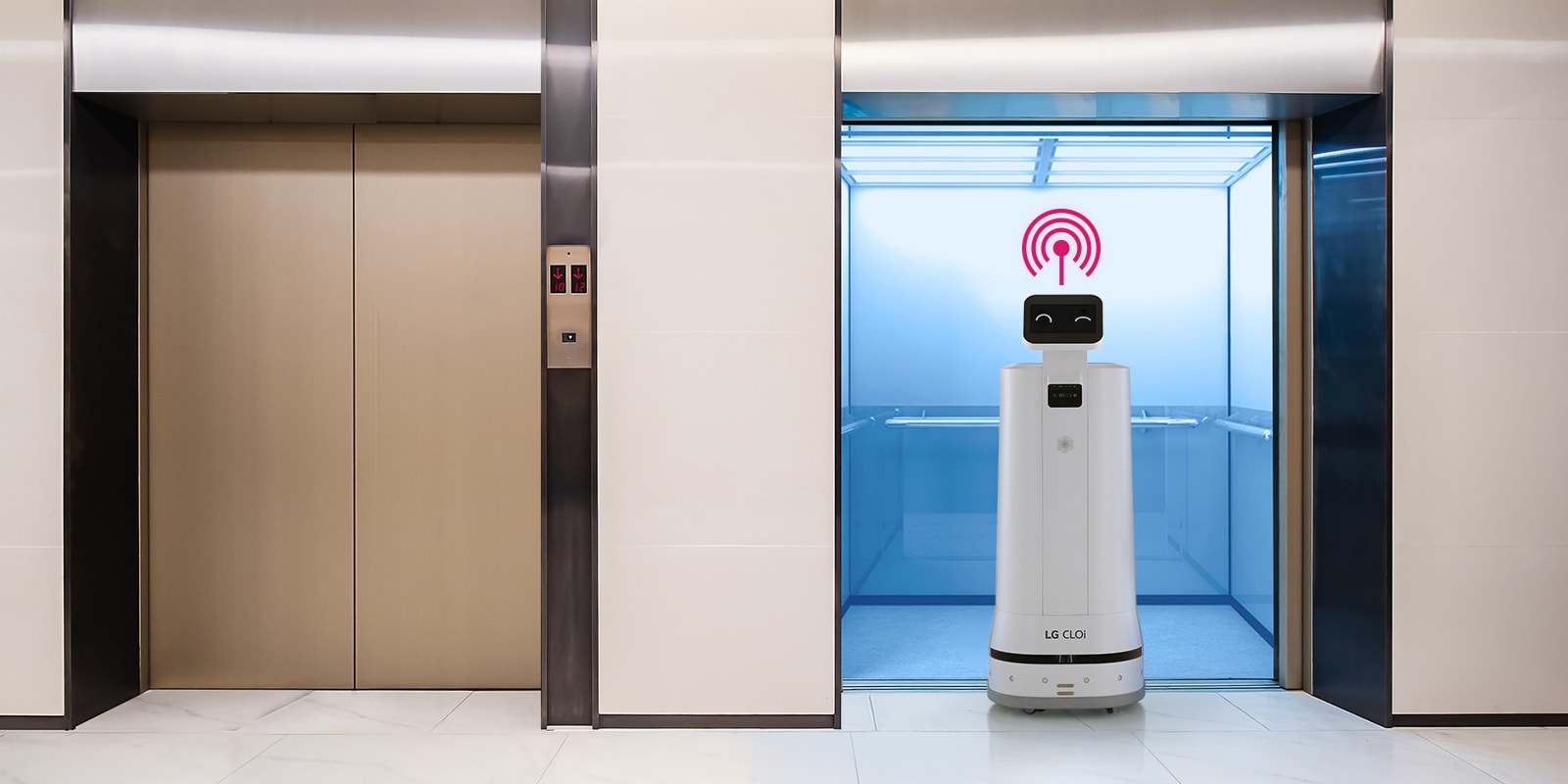

Elevator Safety Certification*

The first delivery robot in Korea to be recognized for its synchronized operation with elevators.

The first delivery robot in Korea to be recognized for its synchronized operation with elevators.

*Elevator Safety Inspection Module Applied — Approved by Ministry of the interior and safety of Korea

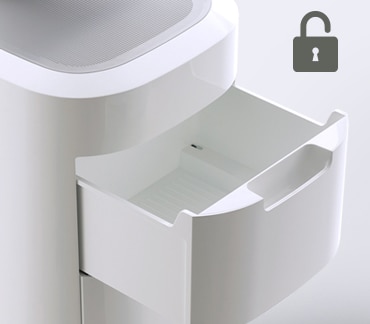

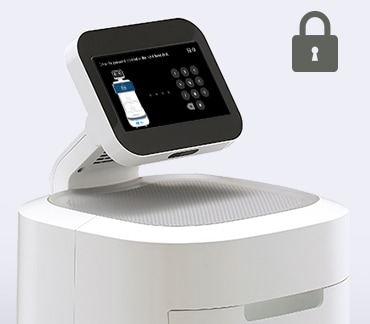

Once items are loaded, drawers are automatically locked to protect privacy and prevent theft during delivery. Departure and arrival notifications are sent via phone calls and text messages, and items can be retrieved through password authentication

Once items are loaded, drawers are automatically locked to protect privacy and prevent theft during delivery. Departure and arrival notifications are sent via phone calls and text messages, and items can be retrieved through password authentication

Automatic lock function to reduce delivery errors

Once items are loaded, drawers are automatically locked to protect privacy and prevent theft during delivery. Departure and arrival notifications are sent via phone calls and text messages, and items can be retrieved through password authentication

Provide customers with easy and convenient contactless delivery by linking various ordering services such as an in-room QR code service.

Linked to ordering service

Provide customers with easy and convenient contactless delivery by linking various ordering services such as an in-room QR code service.

*In-room QR code service image is simulated to enhace feature understanding.

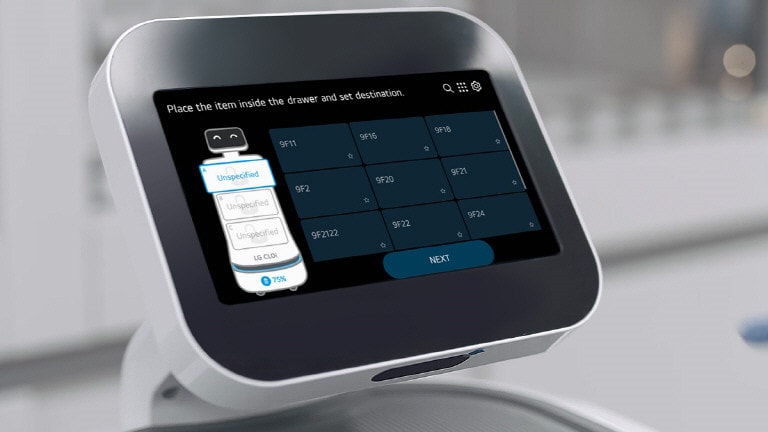

Streamline the delivery route and respond promptly to customers by covering up to three destinations in one operation.

Smart multi-point delivery

Streamline the delivery route and respond promptly to customers by covering up to three destinations in one operation.

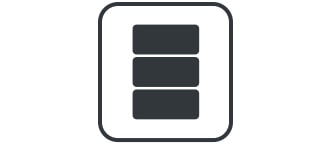

5kg drawer
configuration Loads up to 15kg (5kg in each drawer, three pieces) Loads up to 15kg
(5kg in each drawer, three pieces)

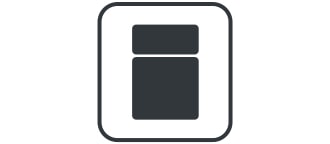

5kg/12kg drawer
configuration Loads up to 17kg (5kg/12kg, two pieces) Loads up to 17kg
(5kg/12kg, two pieces)

Delivery technology useful for various businesses

Custom solutions optimized for each vertical.

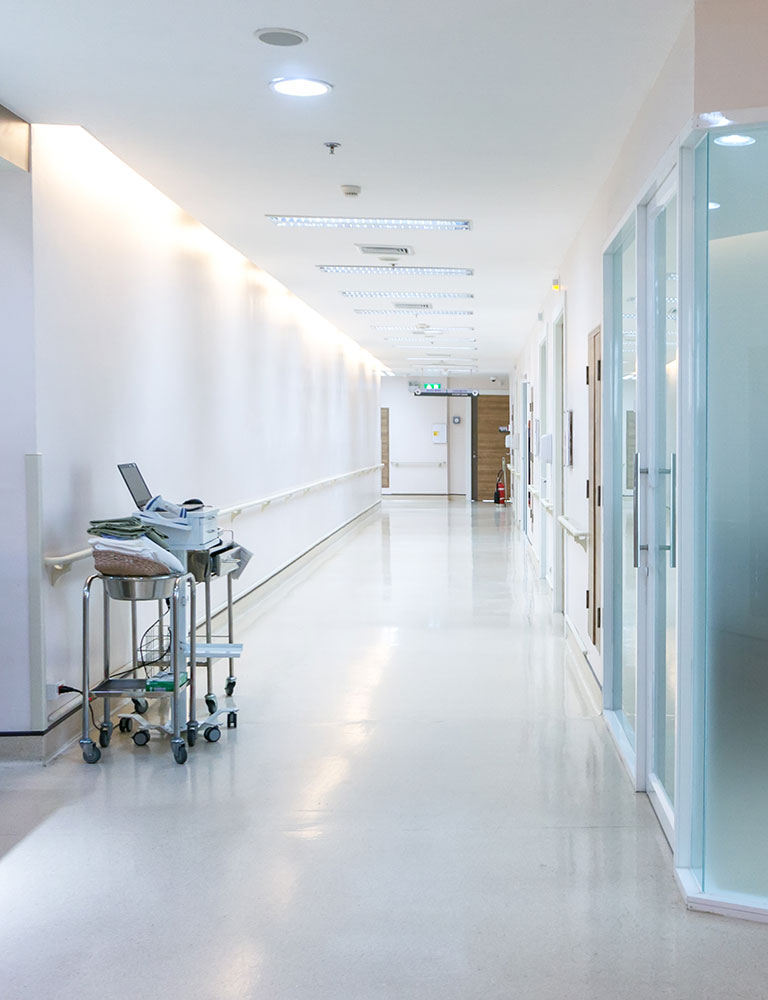

Support the medical staff's workflow by safely and accurately transporting samples and reagents.

Hospitals

Support the medical staff’s workflow by safely and accurately transporting samples and reagents.

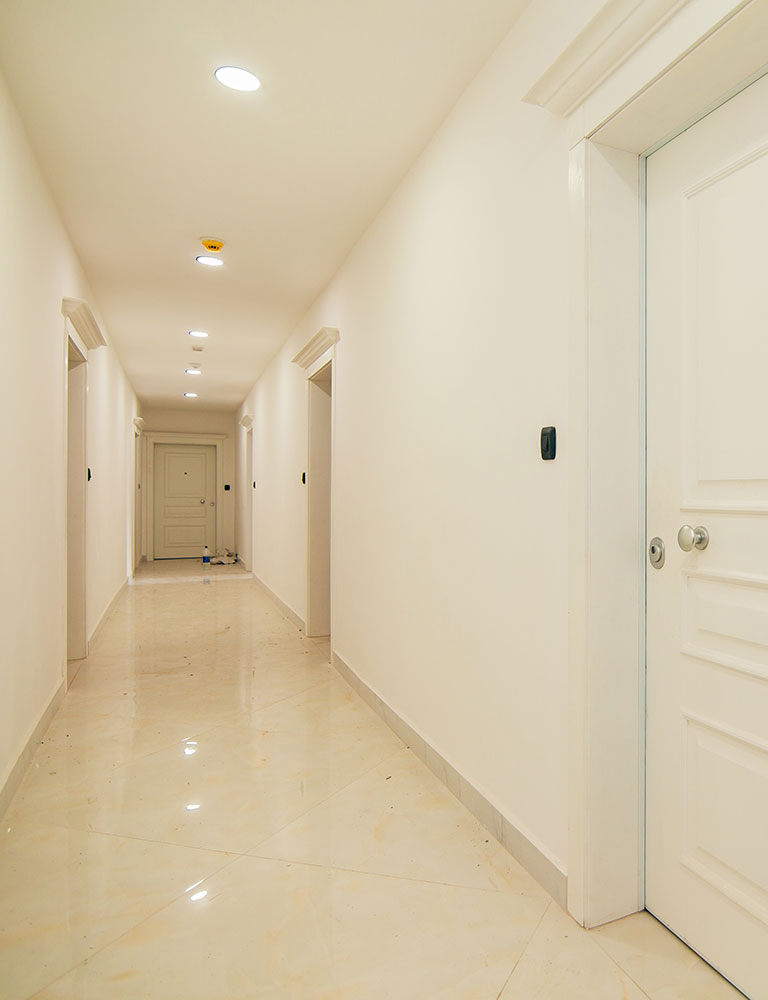

Groceries and essentials delivery through synchronized operation with elevators and automatic doors.

Hotels / Resorts / Serviced residences

Groceries and essentials delivery through synchronized operation with elevators and automatic doors.

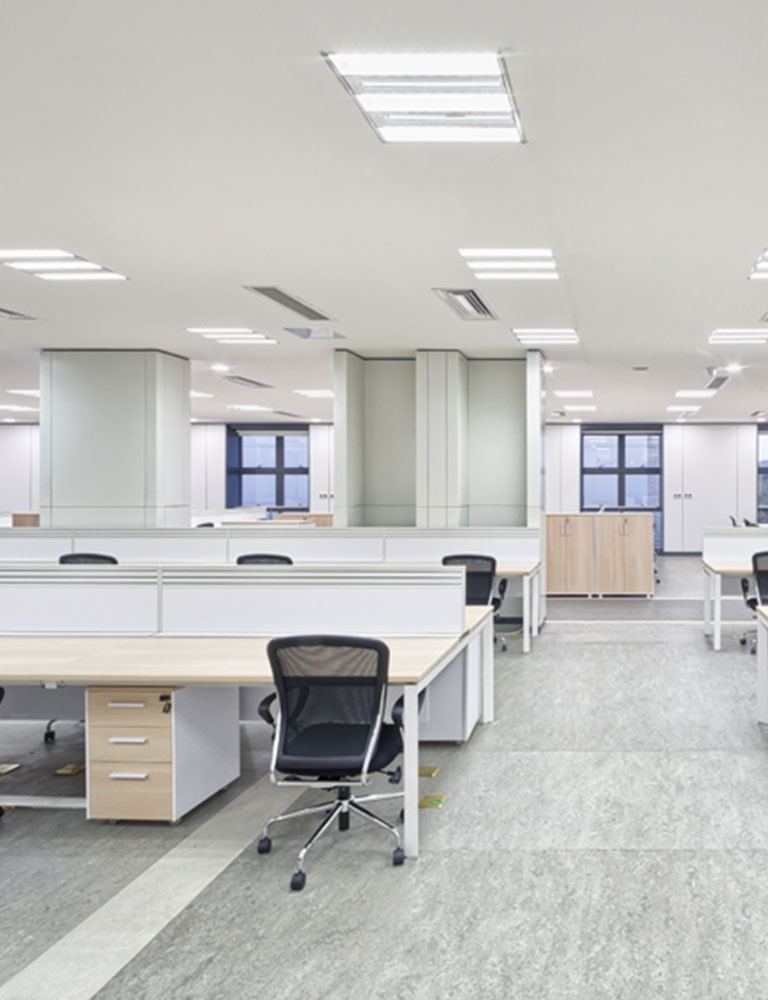

Increase effciency by reducing the transport of parcels.

Offices and commercial buildings

Increase effciency by reducing the transport of parcels.

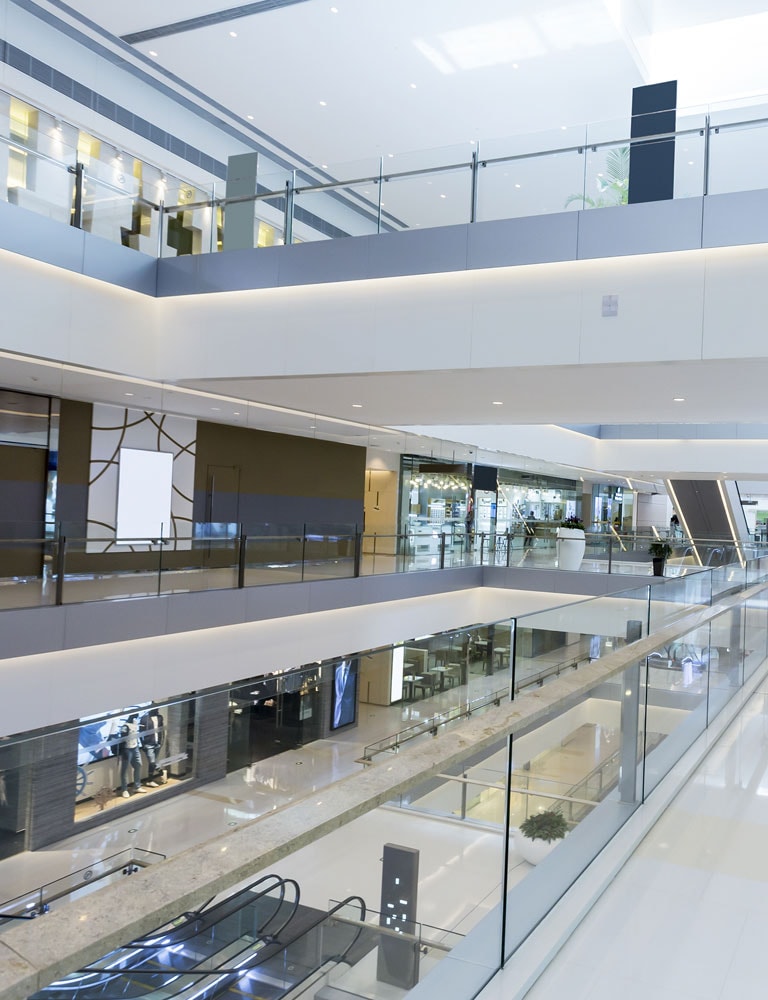

Create new revenue opportunities with commercial tenants by providing indoor delivery services.

Retail spaces

Create new revenue opportunities with commercial tenants by providing indoor delivery services.

Specification

Dimensions (WxHxD): 51x130x51cm
Weight: 68kg
Load Capacity: 15kg (1.0) / 17kg (1.5)
Number of Drawers: 3 (1.0) / 2 (1.5)
Drawer Size (Height): 15cm (1.0) / 15cm, 35cm (1.5)

Sensor

Types: LiDAR / 3D Camera / Ultrasonic / Bumper

Display

Screen: 9.2″ Touch LCD Display (rotatable)
Status LED (Action/Status Alert): RED / BLUE / GREEN

Connectivity

LTE

Battery

Capacity: 23,000mAH
Charging Time: 2.5 hours
Continuous Operating Time/Waiting Time: 5 hours / 12 hours
Battery Certification: UL2271
Charging Type: Automatic

Language

Voice/Display Options: Korean / English
Voice Content: Driving, Arrival Notification (call/text)
Voice Content Phrases Change: Yes

Autonomous Driving

Obstacle Recognition: Automatic Obstacle Recognition
Obstacle Avoidance: Real-time Route Planning & Driving
Speed (Max.): 1.0m/s (adjustable)
Drive Width (Min.): 70cm
Surface Compatibility: Marble / Carpet / Tile / Cement
Path Error: In-place Reboot

Certification

Safety/Electromagnetic Wave: KC
Elevator Safe Certification: Yes (Elevator safety inspection module applied – approved by Ministry of the Interior and Safety of Korea)

Others

Cloud: PC / Mobile
Automatic Doors: Yes
