LG GSCA039 Outdoor LED Signage

Pixel Pitch: 3.91mm
Brightness: 5,000 cd/m²
Fast Assembly and Easy Maintenance
Two Cabinet Options
IP65 Weatherproof Design
90º Corner Option Available

Contact Now

Overview Specification

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

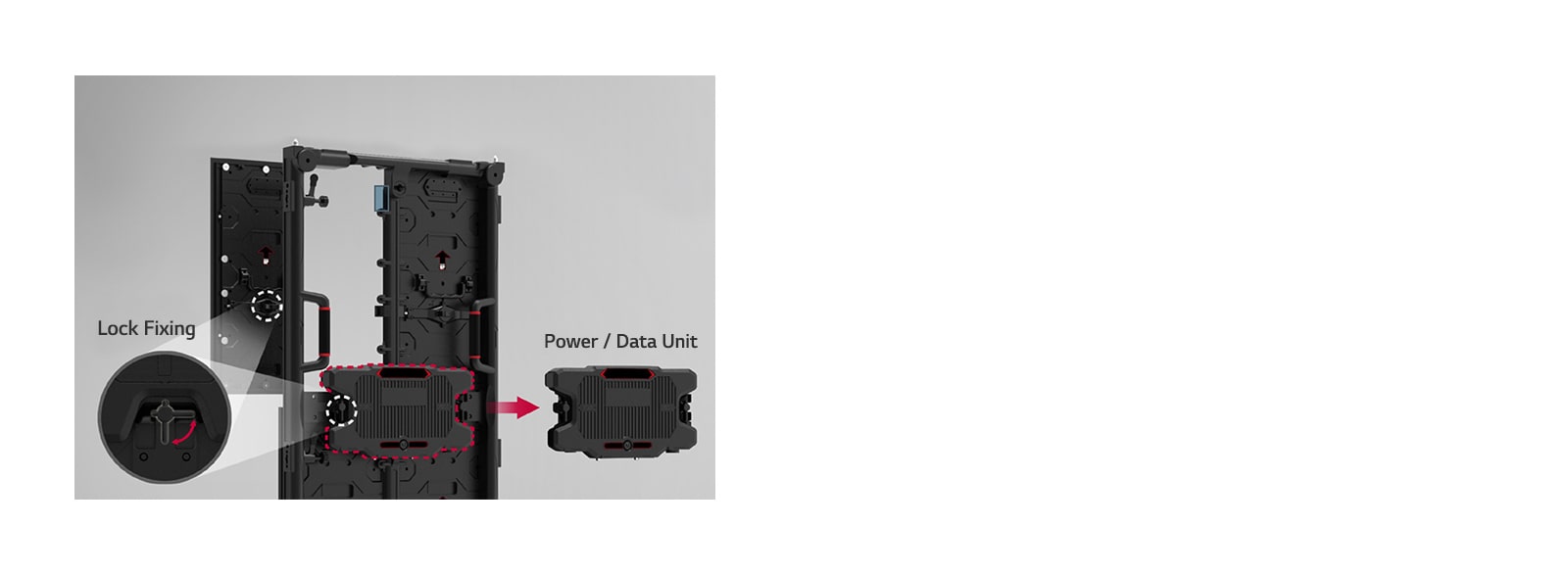

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

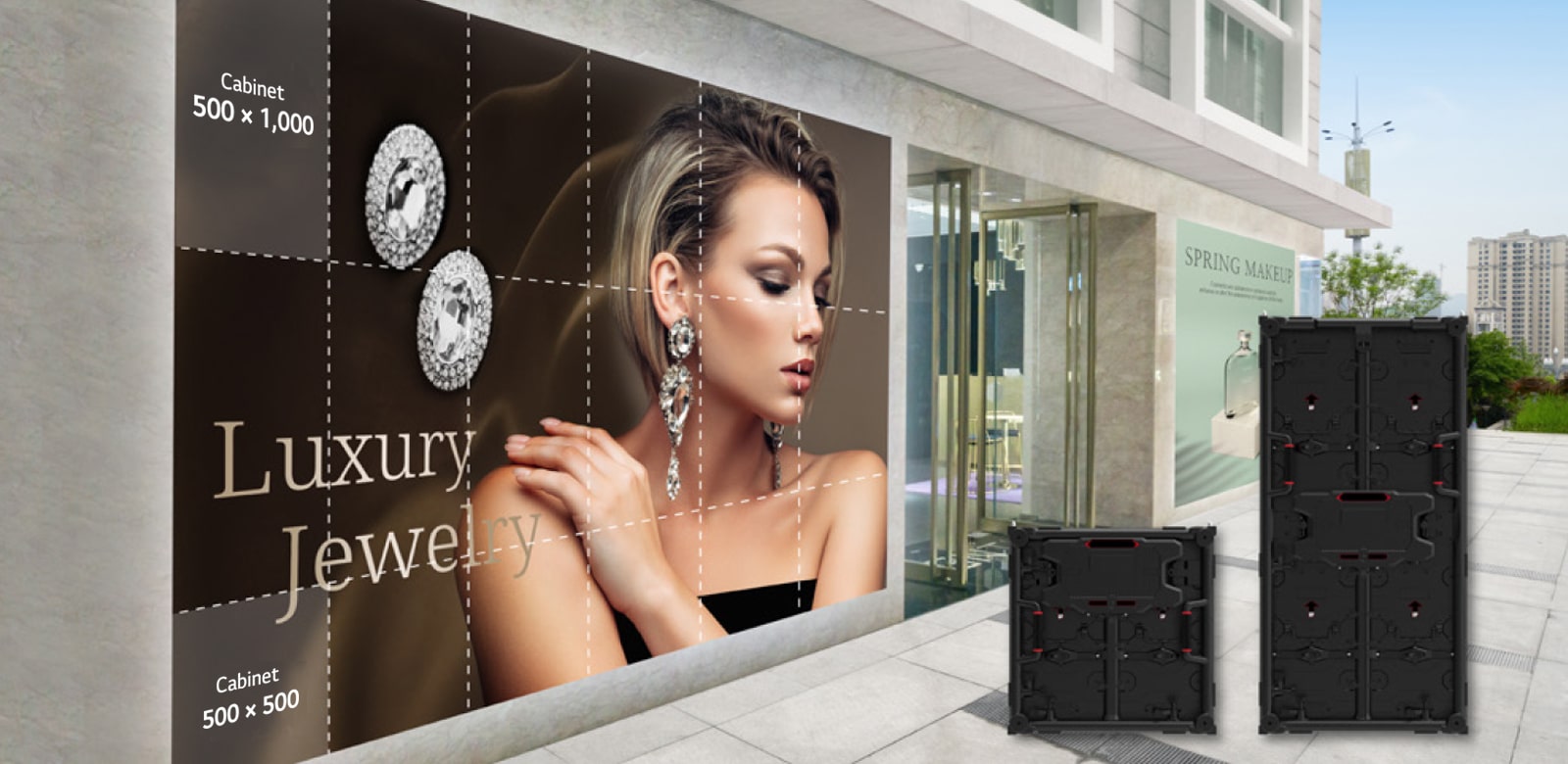

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer’s demands.

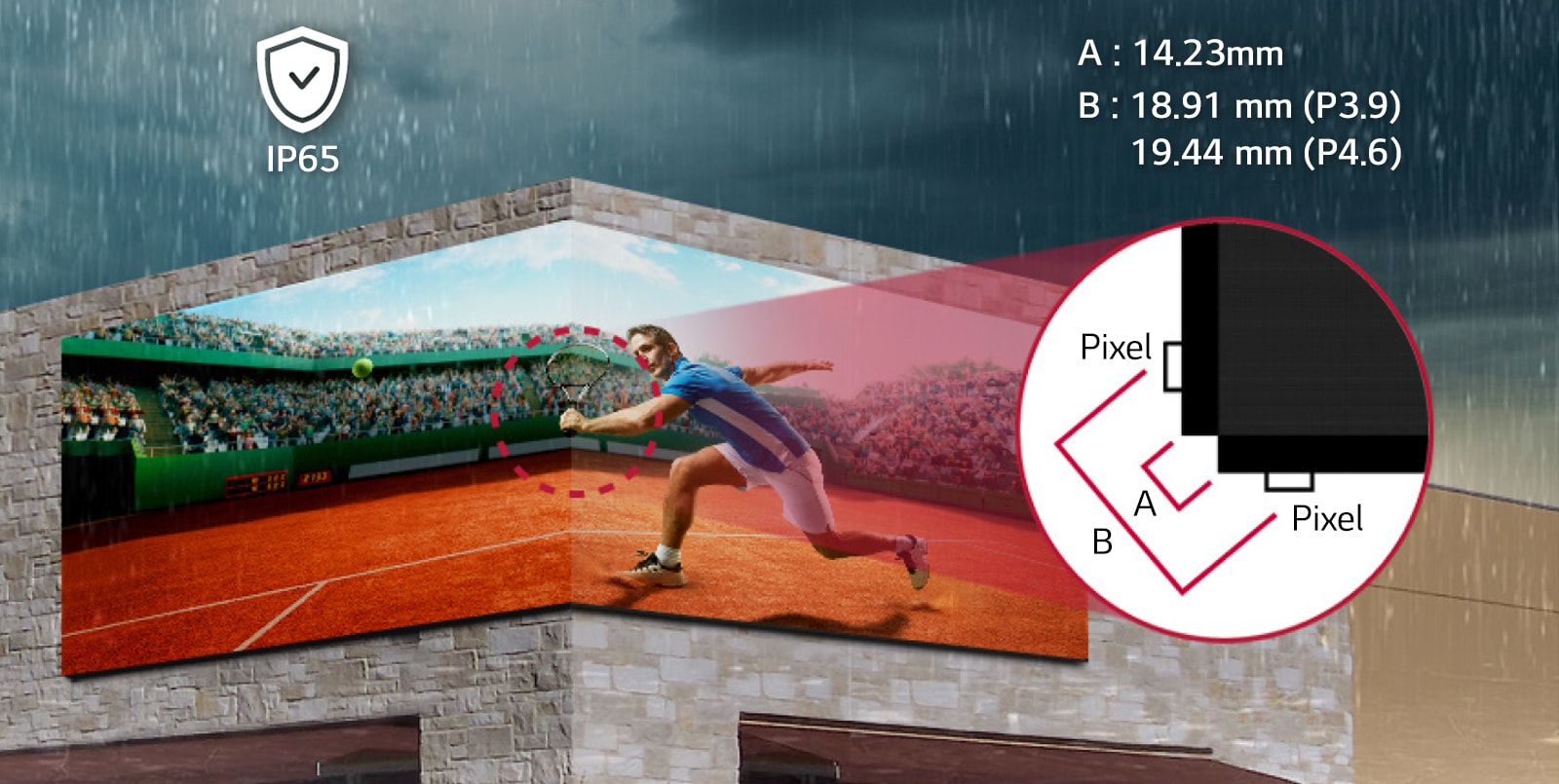

IP Rated Weatherproof
& 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

Pixel Pitch: 3.91mm
Brightness: 5,000 cd/m²
Fast Assembly and Easy Maintenance
Two Cabinet Options
IP65 Weatherproof Design
90º Corner Option Available
Pixel Configuration 3 in 1 SMD
Pixel Pitch (mm) 3.91
Module Resolution (W x H) 64 × 128
Module Dimensions (W x H, mm) 250 × 500
Weight per Module (kg) 1.40
No. of Modules per Cabinet (W × H) 2 × 2 / 2 × 1 (Half-sized)
Cabinet Resolution (W × H) 128 × 256 / 128 × 128 (Half-sized)
Cabinet Dimensions (W x H x D, mm) 500 × 1,000 × 66.05
500 × 500 × 66.05 (Half-sized)
Cabinet Surface Area (m²) 0.500 / 0.250 (Half-sized)
Weight per Cabinet (kg/cabinet) 12.5 / 7.9 (Half-sized)
Weight per Square Meter (kg/m²) 24.9 / 31.7 (Half-sized)
Physical Pixel Density (pixels/m²) 65,536
Flatness of Cabinet ± 0.3 mm
Cabinet Material Die-casting Magnesium

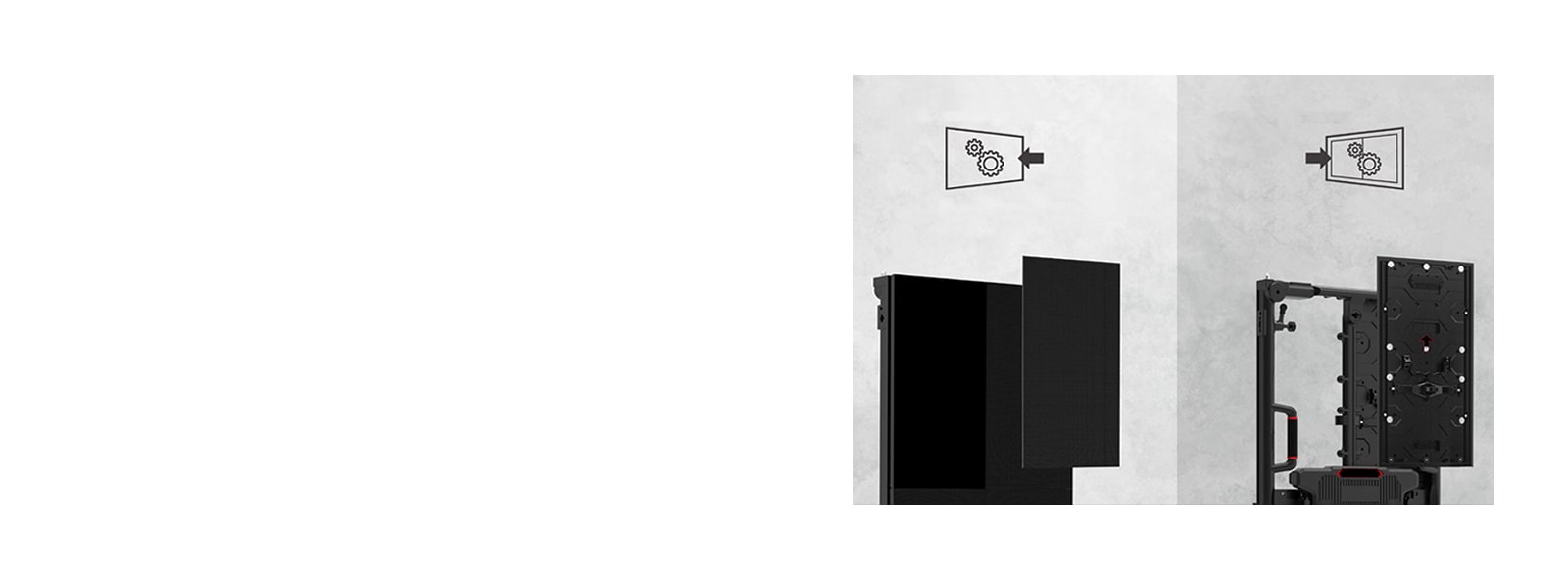

Service Access Front or Rear (One Option Only)
Min. Brightness (After Calibration) 5,000
Color Temperature 3,500 ~ 9,000
Visual Viewing Angle (Horizontal/Vertical) 160 / 155
Brightness Uniformity 97%
Color Uniformity ± 0.003 Cx,Cy
Contrast Ratio 6,000
Processing Depth (bit) 14
