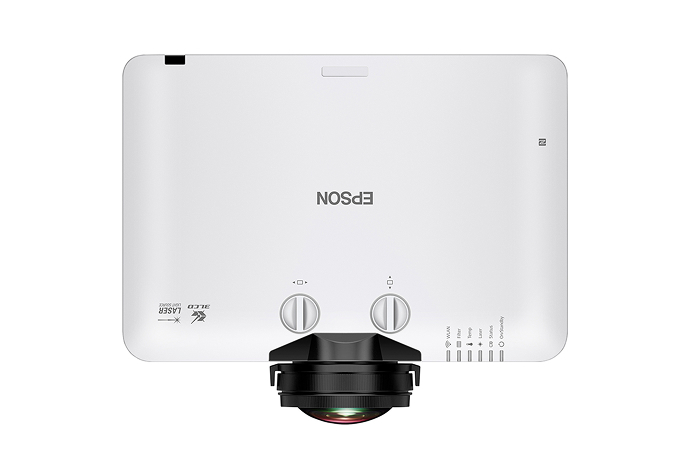

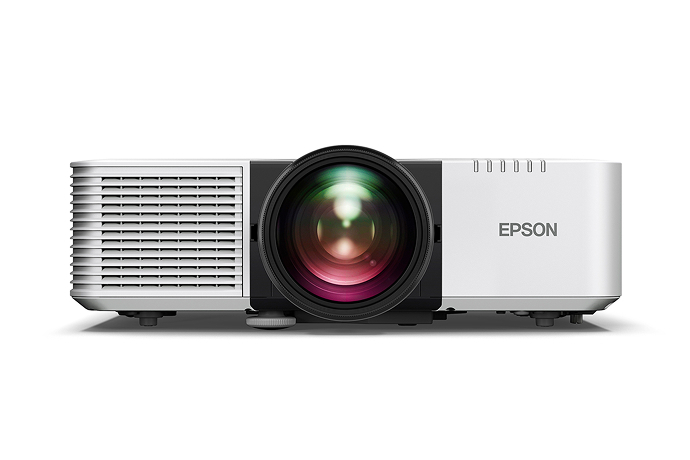

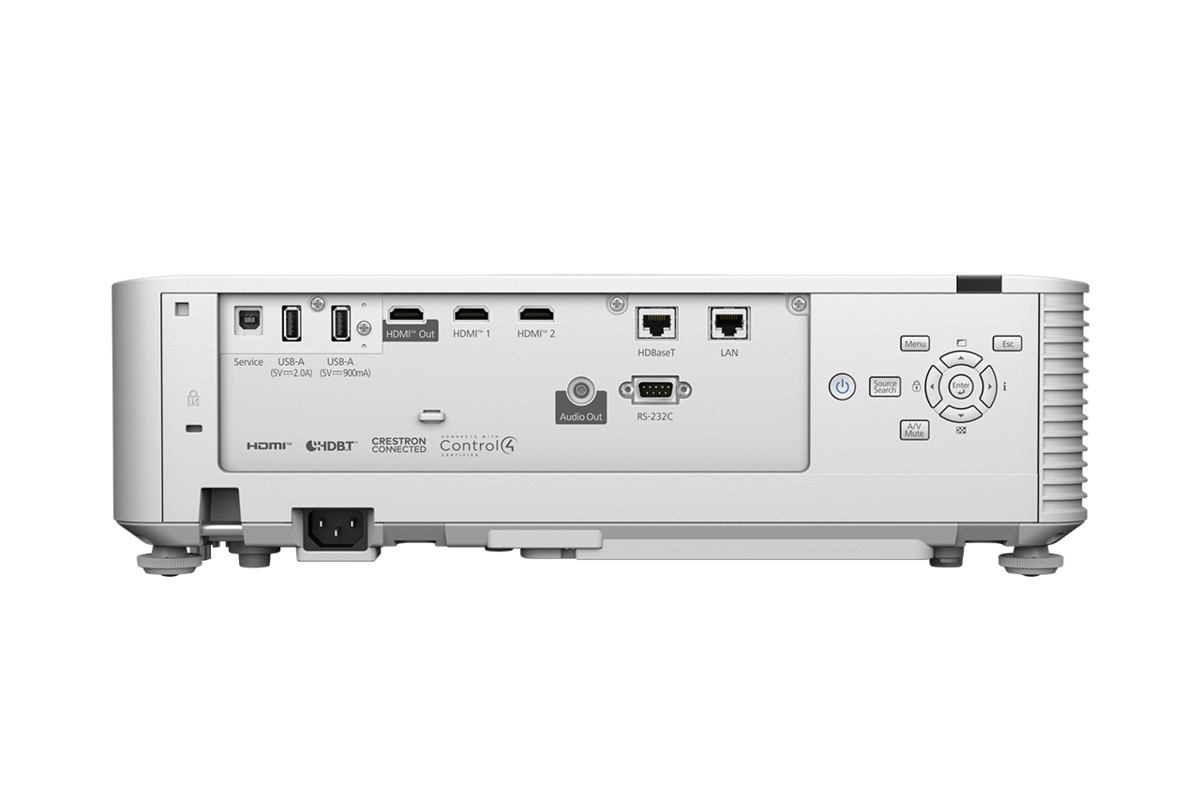

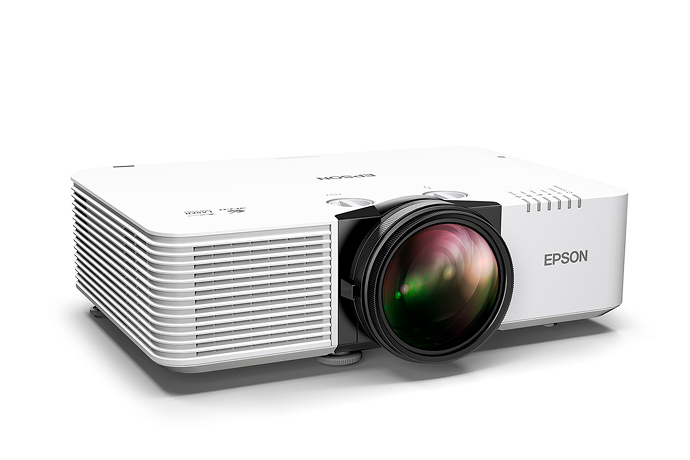

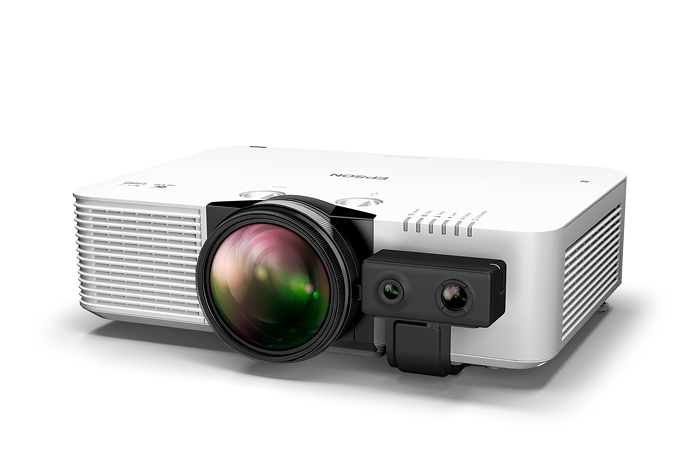

Epson EB-L690SU Short Throw WUXGA 3LCD Laser Projector

Overview:

• Ultra bright, true-to-life images
  3-chip 3LCD technology and 6,200 lumens of equal color and white brightness¹
• WUXGA resolution
  Provides 1920 x 1200 resolution for vibrant, high-definition images
• Large, versatile display options
  Easily create a display up to 400″ diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
• Simplified installation
  Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
• Low maintenance
  Up to 30,000-hour laser light source² and air filter in Extended Mode
• Wireless networking and content sharing
  Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Specifications:

• Type: Electrostatic Filter
• Maintenance Cycle*2: 20,000 hours (Normal) / 30,000 hours (Extended)
• Size – projected distance: 254cm (100”) diagonal (wide: 9.3’ – tele: 19.8’)
• Contrast Ratio: Over 50,00,000:1
• Projection Method: Front / rear / ceiling mount
• Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix
• Sound Output: 10 W Monaural
• Aspect Ratio: Native 16:9
• Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS
• Native Resolution: WUXGA
• Laser Type: Laser Diode 41.9 mW (Output)
• Light Source Life: Up to 20,000 hours (ECO Mode)*2
• Open (D x W x H): 440 x 304 x 122 mm
• Weight: Approx. 8.9kg
• White Light Output (Normal / Eco): 6,200lm / 4,340 lm*1
• Colour Light Output: 6,200 lm*1
• Contrast Ratio: Over 50,00.000 : 1
• Colour Mode: Dynamic, Presentation, Cinema, BT.709 Natural, DICOM, SIM, Multi-PJ
• Light Output (Center): 6700*3
