Filmbase Flying Display

Technical Principles

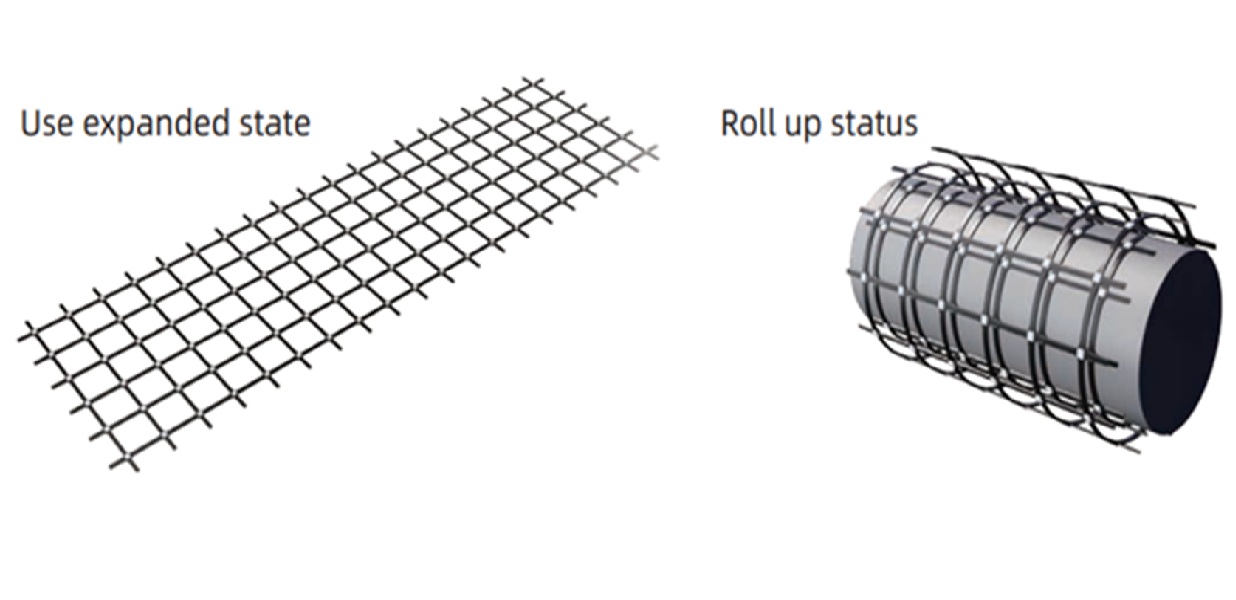

• An innovative display with global invention patent (CN202411389517.4), specially designed for low-altitude performances and aerial media, adopts the “three super” LED technology of ultra-light (250g/m2), ultra-thin (2mm), and ultra-transparent (more than 95% transmittance), which realizes the naked-eye 3D visual feast fused with the sky. 3D visual feast.

Applications

• Its large size of 5×15 meters breaks the market record of flying screen and has applied for Guinness World Records, and supports multi-screen linkage (up to 10×30 meters), which is widely used in brand display, festival performances, air weddings and other scenarios, breaking through the limitations of traditional advertisements, and leading the new mode of airborne communication in the 5.0 era.

Specifications

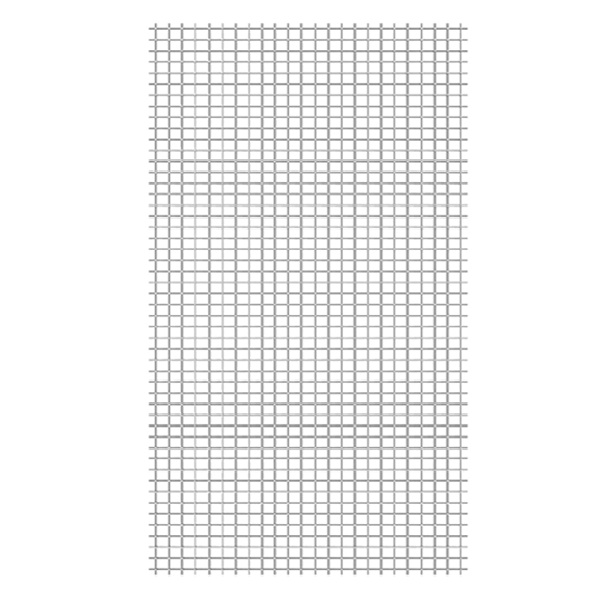

LED screen

• Screen size W4.8*H15m
• Resolving Power P40
• Spacing 40*40mm
• Pixel 45000 dots
• LED chip drive voltage +5VDC
• Standard power supply type power battery
• Lamp Bead Packaging 2020/2528/3030/3535
• Drive Mode Static state
• Refresh Frequency 3840/1920Hz
• Chip Structure RGB+IC
• standard broadcast control system Novastar
• Operation Method Phone, iPad，computer
• Media Format Video; images
• Video Format AVI; MP4; WMV; MOV
• Image Format JPG; PNG; GIF; BMP

Power Battery

• Battery name Ternary lithium battery
• Standard battery capacity 250Wh per set
• Load width Width 960 mm/set

Unmanned aerial vehicle

• Expand size 3140*2980*802
• Wing folded size 1140*850*940
• Whole machine weight (including battery) 48.4±0.5（kg）
• Rated takeo ffweight 98.4±0.5（kg）
• Maximum takeo ffweight 103.4±0.5（kg）
• Idle hover time（min） 30(30000mAh+tak eo ffweight 48.4kg)
• Full load hover time（min）15 (30000mAh+tak eo ffweight 48.4kg)
• Suggest height limit 120m
• Suggested speed limit 3m/s
• Maximum flight distance 1500m
• Image Maximum pitch angleFormat 15°
• Windproof grade ＜Level 3
