Filmbase Folding Door Transparent Film

Unprecedented Cost-Effectiveness

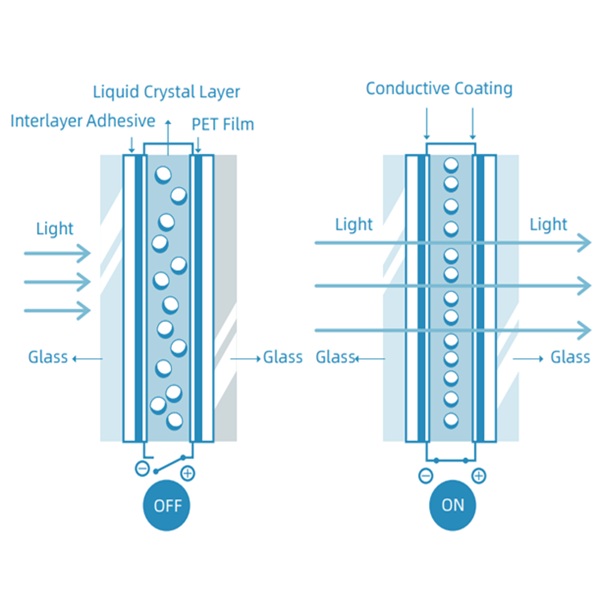

• Smart doors and windows are a brand new product from Filmbase, which perfectly combines PDLC glass with door and window systems. It can switch between transparency and privacy modes with one click, and has multiple functions such as heat insulation, sound insulation, and energy saving.

Application

• Widely used in luxury villas, balconies, lobbies, hotel rooms, office partitions, medical clinics, and commercial display spaces.

Product Parameters

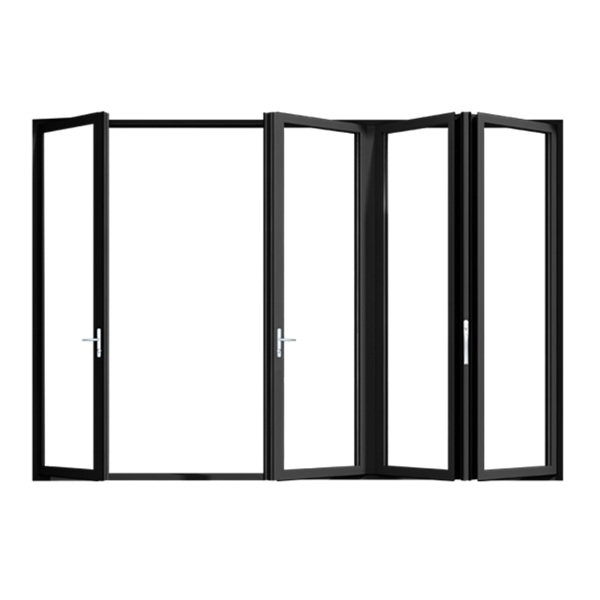

• Products: 73-65 Folding door
• Standard Glass: 5+5+15a+5 (84 Ultra White with accessories)
• Door Frame Colour: Metallic Gray, Brown, Sand Gray
• Detailed parameters:
  • Material wall thickness: 2.0mm, frame width: 73mm, opening fan width: 65mm
  • Can be made in odd and even, height up to 3.5 meters, total width is unlimited, the width of the movable fan is limited to within 1 meter, the minimum height of 1.2 meters.

Optical Parameter

• Operating voltage:
  • • ON/OFF
      • ON 60V
    • Test Methods/Standards
      • Multimeter/Voltage Regulator,WGW
  • Power consumption:
    • ON/OFF
      • ON ≤ 5W/m2
    • Test Methods/Standards
      • Multi-parameter electric measuring instrument
  • Viewing angle:
    • ON/OFF
      • ON ≥ 160°
    • Test Methods/Standards
      • Visual Inspection
  • Uv blocking rate:
    • ON/OFF
      • OFF ≥ 99%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Infrared blocking rate:
    • ON/OFF
      • OFF ≥ 60%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Response time:
    • ON/OFF
      • OFF→ON ≤ 30 ms
      • ON→OFF ≤ 200 ms
    • Test Methods/Standards
      • Liquid crystal parameter integrated tester
      • Liquid crystal parameter integrated tester
  • Operating temperature
    • ON/OFF
      • – -30°C ~ 85°C
    • Test Methods/Standards
      • constant temperature and humidity testing machine
  • Life-span
    • ON/OFF
      • 100000 Hours
    • Test Methods/Standards
      • GB18910.5-2008
  • Switching times
    • ON/OFF
      • ≥ 2 million times
    • Test Methods/Standards
      • Self-made on/off tester
