Filmbase Smart Doors and Window Privacy Partition

Unprecedented Cost-Effectiveness

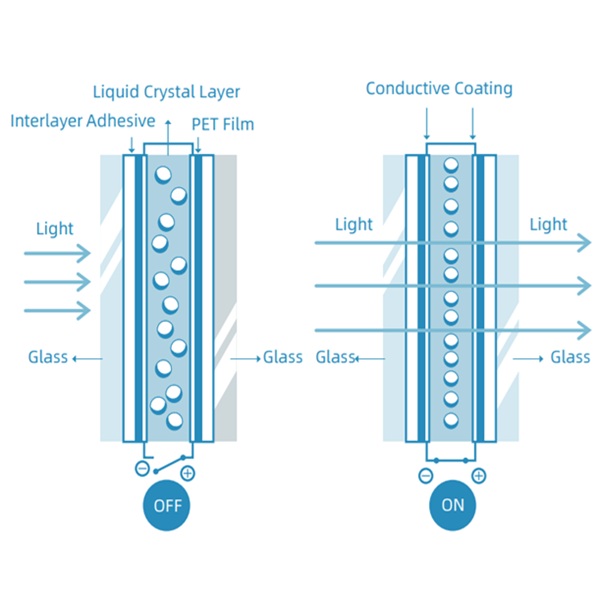

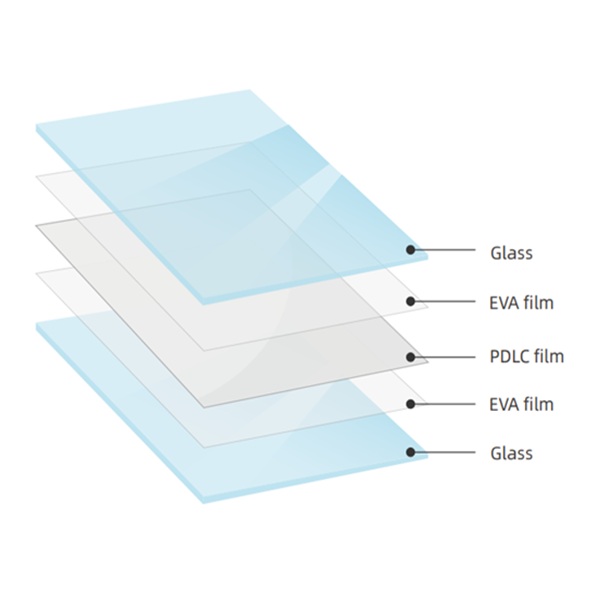

• Smart doors and windows are a brand new product from Filmbase, which perfectly combines PDLC glass with door and window systems. It can switch between transparency and privacy modes with one click, and has multiple functions such as heat insulation, sound insulation, and energy saving.

Application

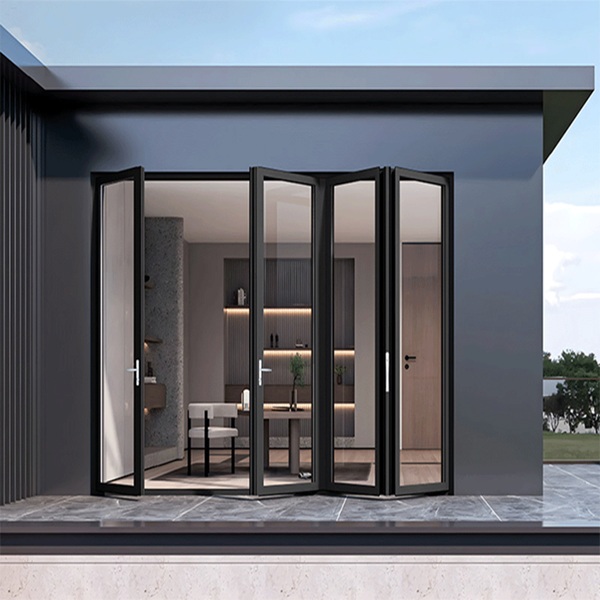

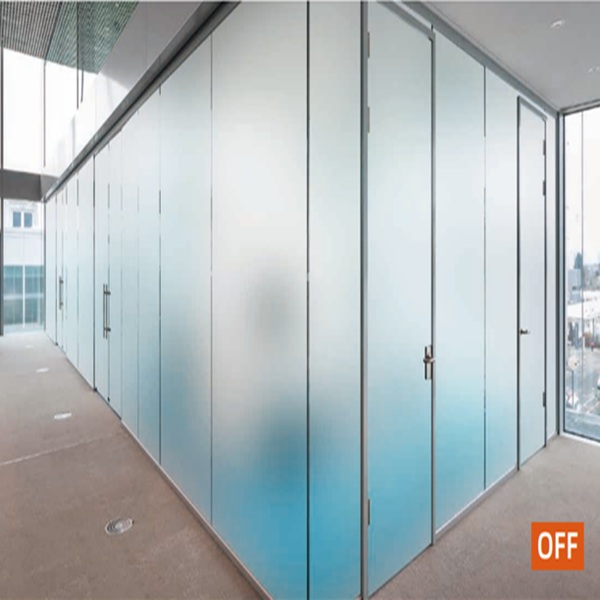

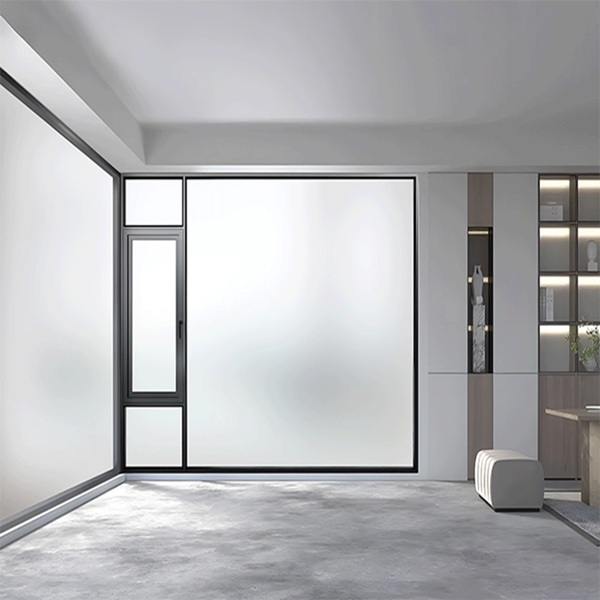

• Widely used in luxury villas, balconies, lobbies, hotel rooms, office partitions, medical clinics, and commercial display spaces.

Product Parameters

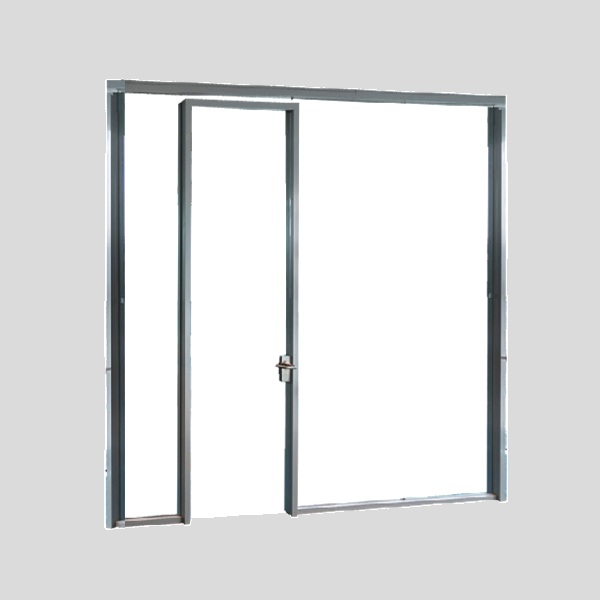

• Products: 83-Panoramic Partition
• Standard Glass: 5+5 (84 Ultra White with accessories)
• Door Frame Colour: Gray, Black
• Detailed parameters:
  • Material wall thickness: 2.0mm
  • Frame width 83mm, module width within 1500mm, wall height within 3500mm

Optical Parameter

• Operating voltage:
  • • ON/OFF
      • ON 60V
    • Test Methods/Standards
      • Multimeter/Voltage Regulator,WGW
  • Power consumption:
    • ON/OFF
      • ON ≤ 5W/m2
    • Test Methods/Standards
      • Multi-parameter electric measuring instrument
  • Viewing angle:
    • ON/OFF
      • ON ≥ 160°
    • Test Methods/Standards
      • Visual Inspection
  • Uv blocking rate:
    • ON/OFF
      • OFF ≥ 99%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Infrared blocking rate:
    • ON/OFF
      • OFF ≥ 60%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Response time:
    • ON/OFF
      • OFF→ON ≤ 30 ms
      • ON→OFF ≤ 200 ms
    • Test Methods/Standards
      • Liquid crystal parameter integrated tester
      • Liquid crystal parameter integrated tester
  • Operating temperature
    • ON/OFF
      • – -30°C ~ 85°C
    • Test Methods/Standards
      • constant temperature and humidity testing machine
  • Life-span
    • ON/OFF
      • 100000 Hours
    • Test Methods/Standards
      • GB18910.5-2008
  • Switching times
    • ON/OFF
      • ≥ 2 million times
    • Test Methods/Standards
      • Self-made on/off tester
