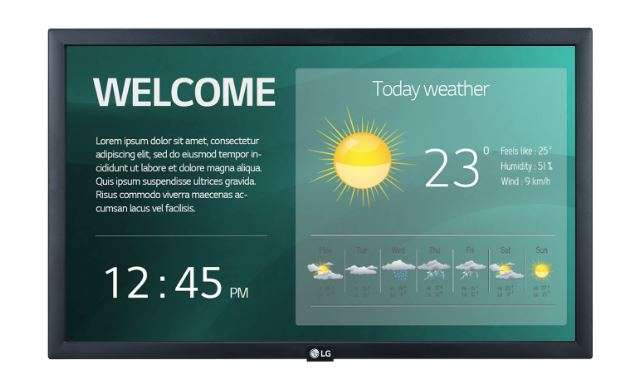

LG 22SM3G 22” LED Digital Signage SM3G Series 22SM3G-B

Technical Specification:

Panel

• Screen Size 21.5”
• Panel Technology IPS
• Aspect Ratio 16 : 9
• Native Resolution 1,920 X 1,080 (FHD)
• Refresh Rate 60 Hz
• Brightness (Typ., cd/m²) 250
• Contrast Ratio 1,000 : 1
• Viewing Angle (H x V) 178 x 178
• Response Time 14ms (G to G)
• Surface Treatment (Haze) 25 %
• Life Time (Min.) 30,000 Hrs
• Operation Hours (Hours / Days) 16 / 7
• Portrait / Landscape Yes / Yes

Mechanical Specification

• Bezel Color Black
• Bezel Width 16.3 mm (Even Bezel)
• Weight (Head) 3.34 kg
• Packed Weight 4.74 kg
• Monitor Dimensions (W × H × D) 510.3 x 302.1 x 53.8 mm
• Carton Dimensions (W × H × D) 565.0 x 357.0 x 103.0 mm
• Handle No

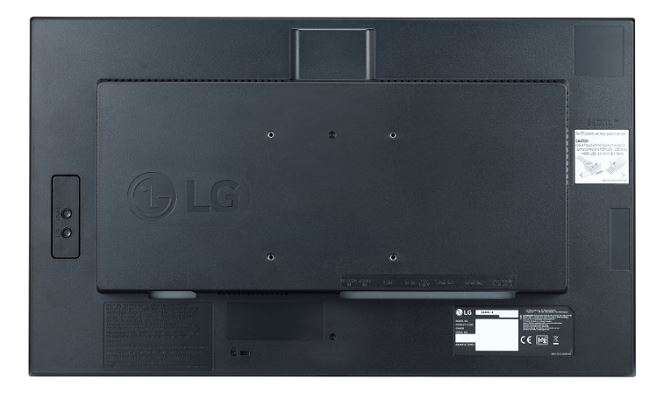

• VESA™ Standard Mount Interface 100 x 100 mm

Feature

• Key Feature Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom

Environment Conditions

• Operation Temperature 0 °C to 40 °C
• Operation Humidity 10 % to 80 %

Power

• Power Supply AC 100-240 V~, 50 / 60 Hz
• Power Type Built-In Power
• Power Consumption (Typ. / Max.) 30 W / 33 W
• Power Consumption (Smart Energy Saving) 15 W ± 5 %

Certification

• Safety CB / NRTL
• EMC FCC Class “A” / CE
• ErP Yes (EU Only)
• ePEAT (US Only) No

OPS Compatibility

• OPS Type Compatible No
• OPS Power Built In No

Software Compatibility

• Content Management Software SuperSign CMS
• Control and Monitoring Software SuperSign Control / Control+
• LG ConnectedCare Yes (The availability of the “LG ConnectedCare” service differs by region.)

Connectivity

• Input HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
• Output –
• External Control RS232C In (Phone-jack), RJ45 (LAN) In, IR In

Sound

• Speaker Yes (1 W x 2 ea)

Accessory

• Basic Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
