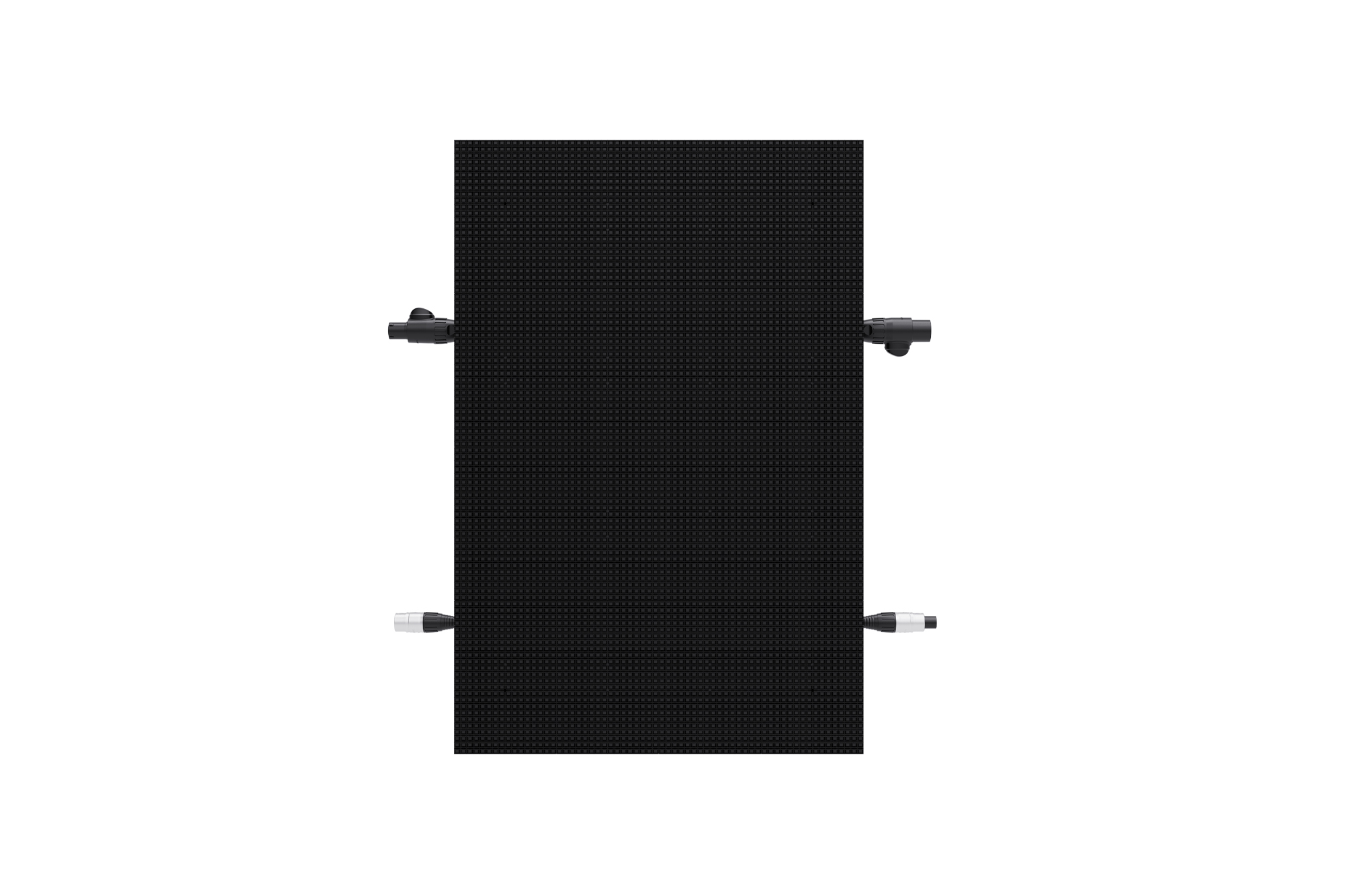

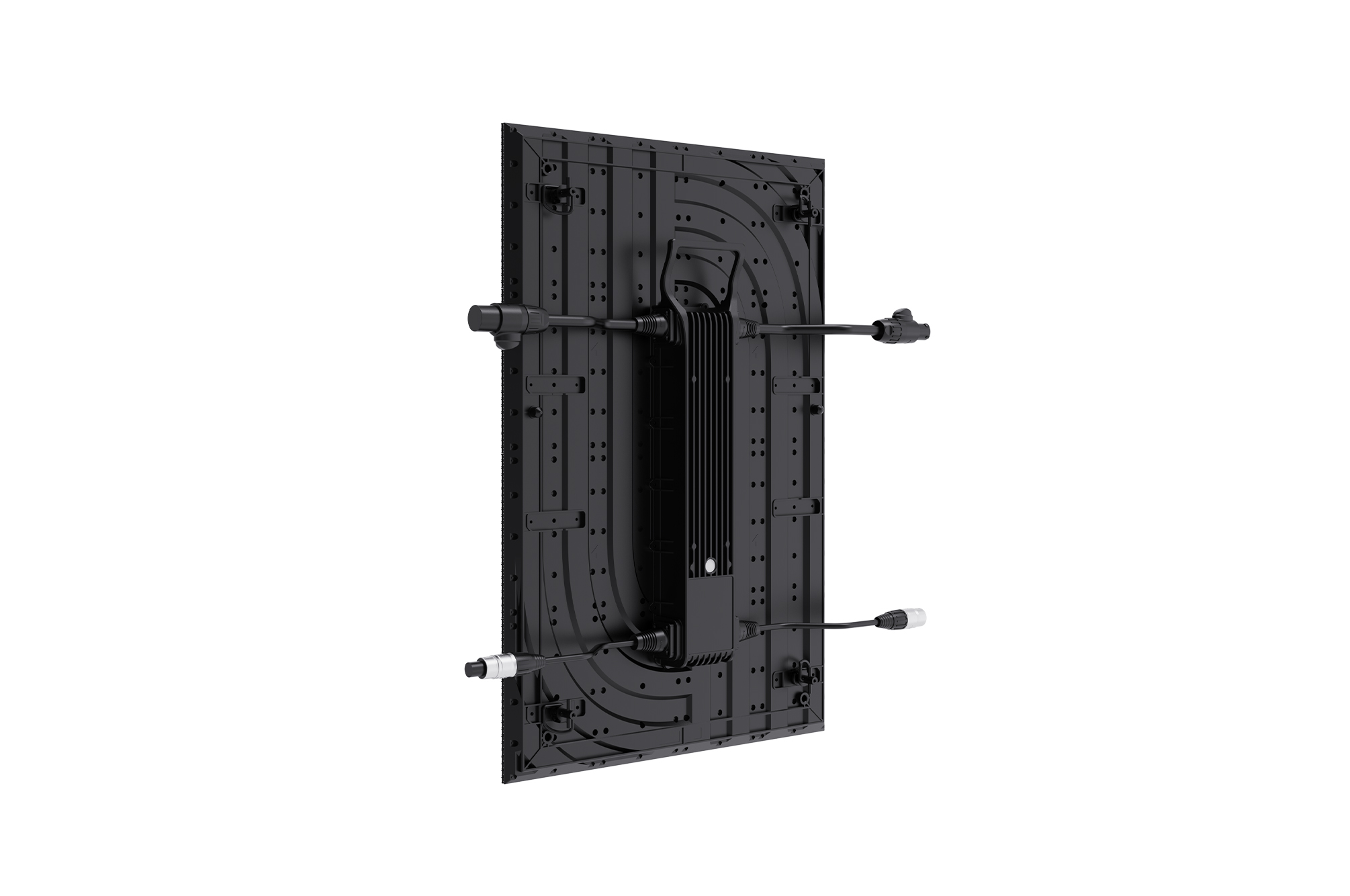

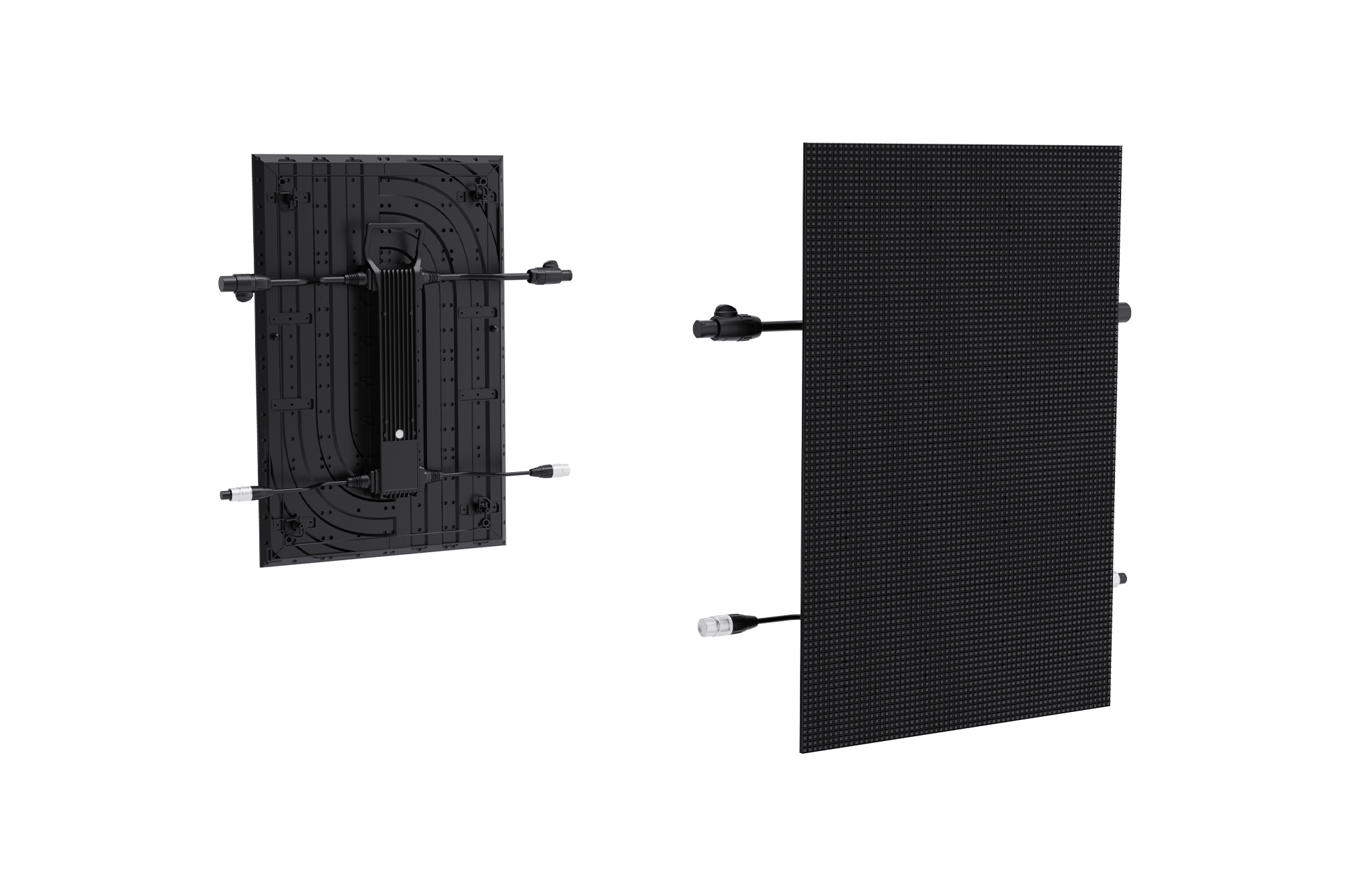

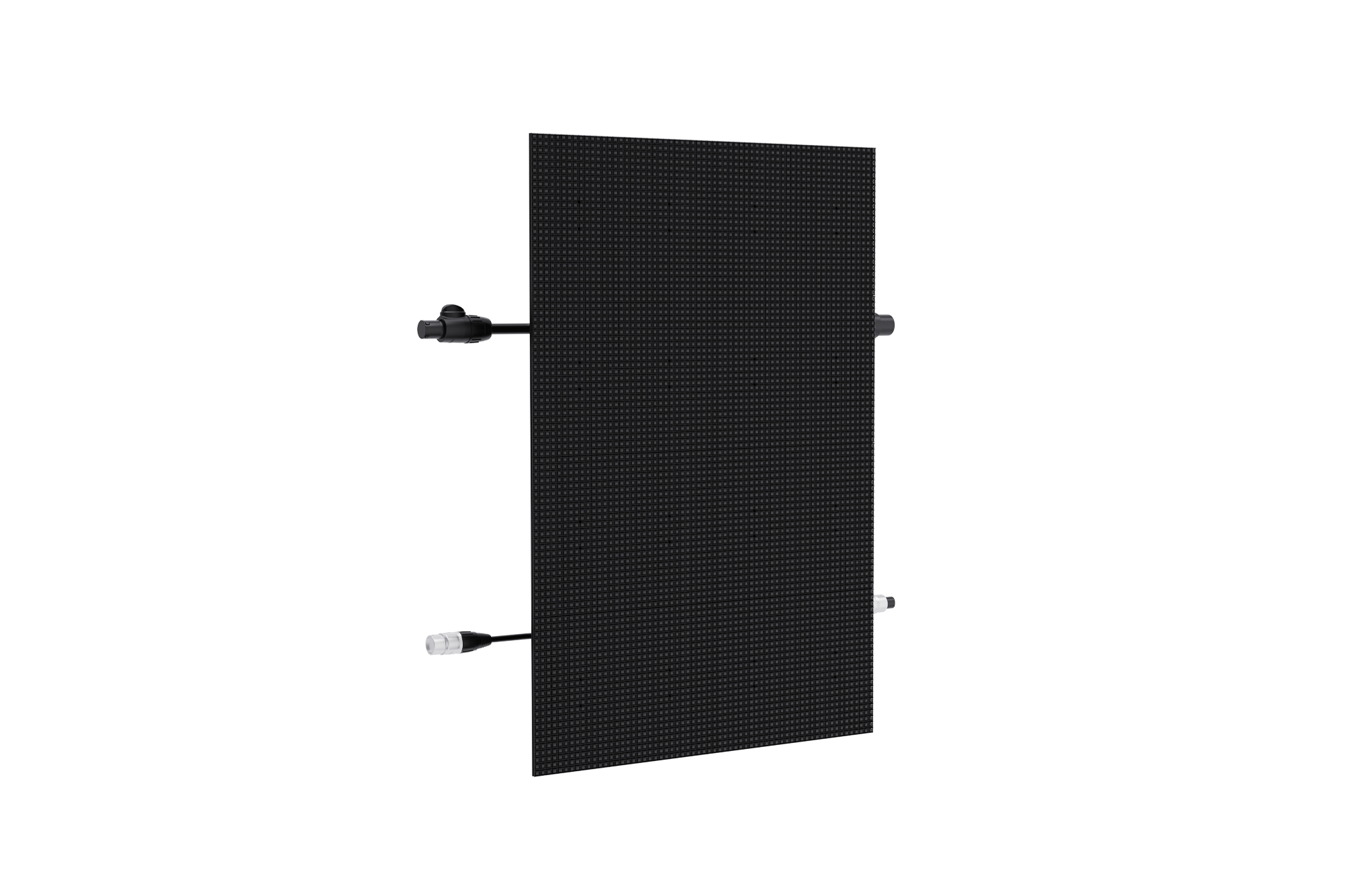

LG GNPA062 Outdoor LED

Tech Specifications:

Physical Parameter

• Pixel Pitch (mm) 6.25
• Pixel Configuration Single SMD
• Module Resolution (W x H) 64 × 96
• Module Dimensions (W x H, mm) 400 × 600
• Weight per Module (kg) 4.6
• Cabinet Resolution (W × H) 64 × 96
• Cabinet Dimensions (W × H × D, mm) 400 × 600 × 58
• No. of Modules per Cabinet (W × H) 1 × 1
• Cabinet Surface Area (m²) 0.24
• Weight per Cabinet (kg/cabinet) 4.6
• Weight per Square Meter (kg/m²) 19
• Physical Pixel Density (pixels/m²) 25,600
• Flatness of Cabinet ±1.0
• Cabinet Material Aluminum
• Service Access Front & Rear

Optical Specifications

• Max. Brightness (After Calibration) 6,000 (Max.)
• Color Temperature (K) 3,200-9,300
• Visual Viewing Angle (Horizontal/Vertical) 160 × 120
• Brightness Uniformity 97%
• Color Uniformity ±0.003Cx,Cy
• Contrast Ratio 10,000 : 1
• Processing Depth (bit) 16 (HDR10, HDR10 Pro)

Electrical Specifications

• Power Consumption (W/Cabinet, Max.) 145
• Power Consumption (W/Cabinet, Avg.) 48
• Power Consumption (W/m², Max.) 605
• Heat Dissipation (BTU/h/Cabinet, Max.) 495
• Heat Dissipation (BTU/h/Cabinet, Avg.) 164
• Heat Dissipation (BTU/h/㎡, Max.) 2,064
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) 7,680

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) -30 to +50
• Operating Humidity 0-90% RH
• IP rating Front / Rear IP67 / IP67
