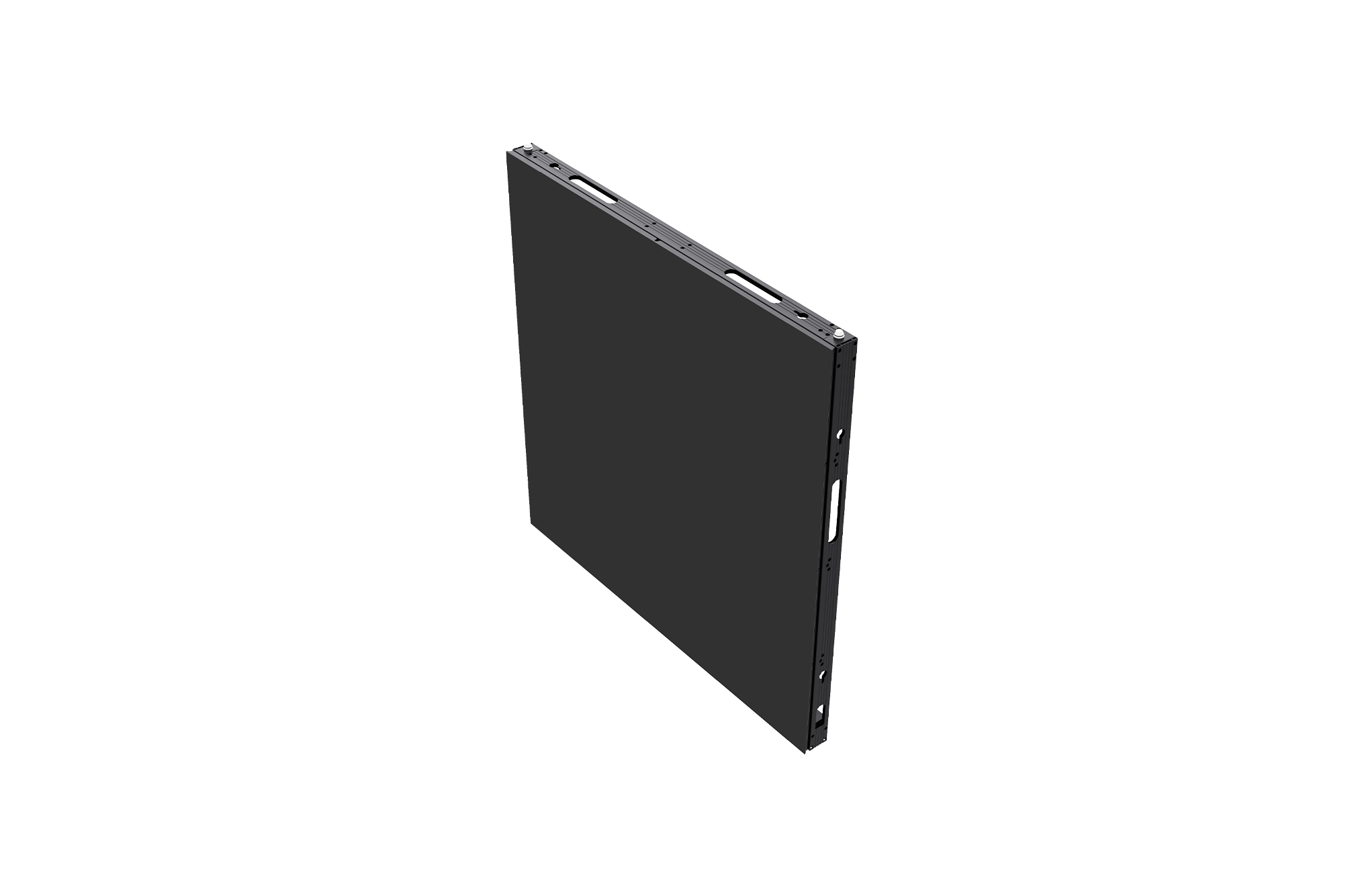

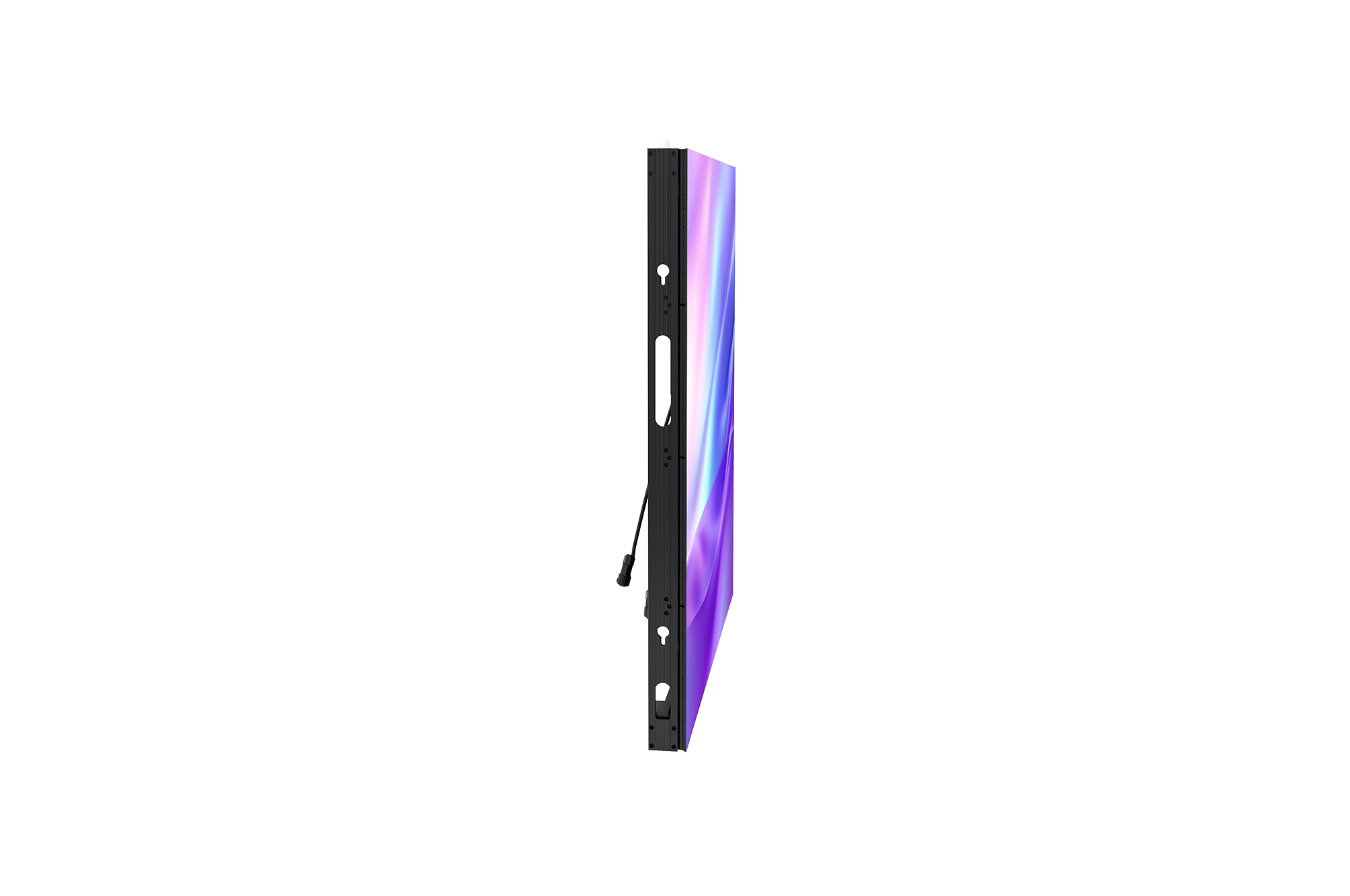

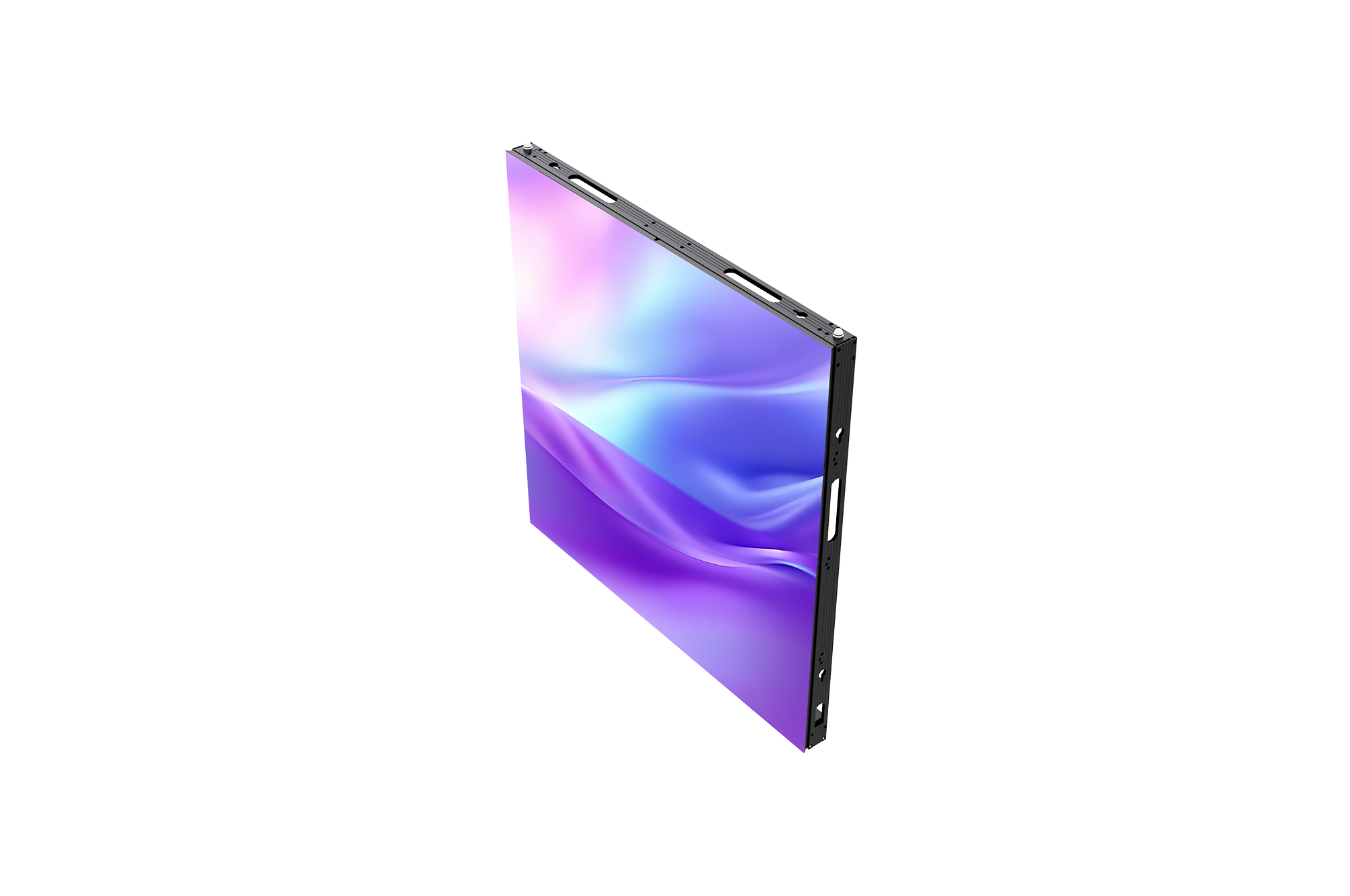

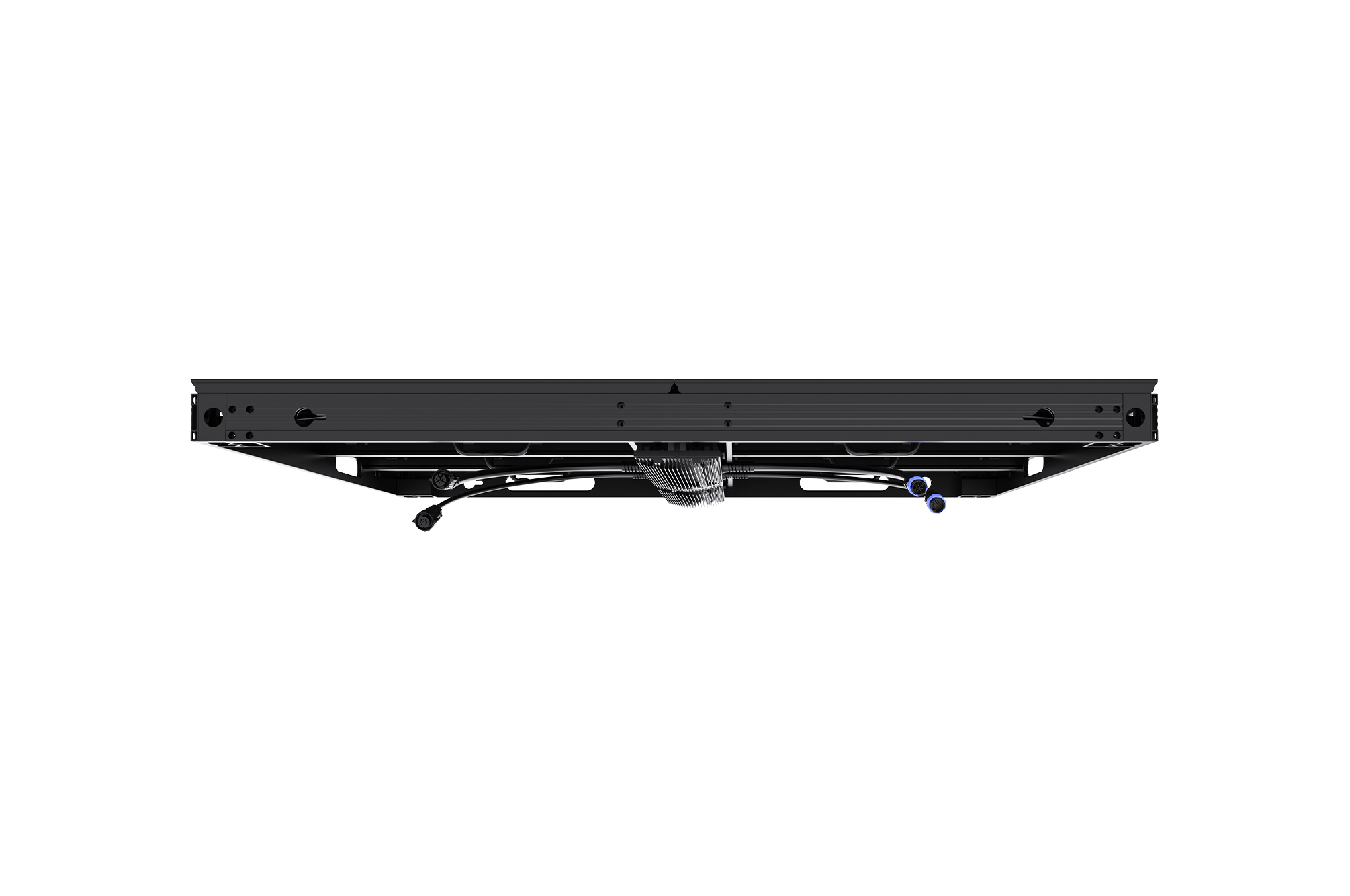

LG GSPB039 Outdoor LED

Tech Specifications:

Physical Parameter

• Pixel Pitch (mm) 3.91
• Pixel Configuration Single SMD
• Module Resolution (W x H) 128 × 64
• Module Dimensions (W x H, mm) 500 × 250
• Weight per Module (kg) 1.6
• Cabinet Resolution (W × H) 256 × 256 (CA/CAC) / 128 × 128 (CB/CBC)
• Cabinet Dimensions (W × H × D, mm) 1,000 × 1,000 × 87 (CA/CAC) / 500 × 500 × 83 (CB/CBC)
• No. of Modules per Cabinet (W × H) 2 × 4 (CA/CAC) / 1 × 2 (CB/CBC)
• Cabinet Surface Area (m²) 1 (CA/CAC) / 0.25 (CB/CBC)
• Weight per Cabinet (kg/cabinet) 23 (CA/CAC) / 8 (CB/CBC)
• Weight per Square Meter (kg/m²) 23 (CA/CAC) / 32 (CB/CBC)
• Physical Pixel Density (pixels/m²) 65,536
• Flatness of Cabinet ±0.5
• Cabinet Material Aluminum

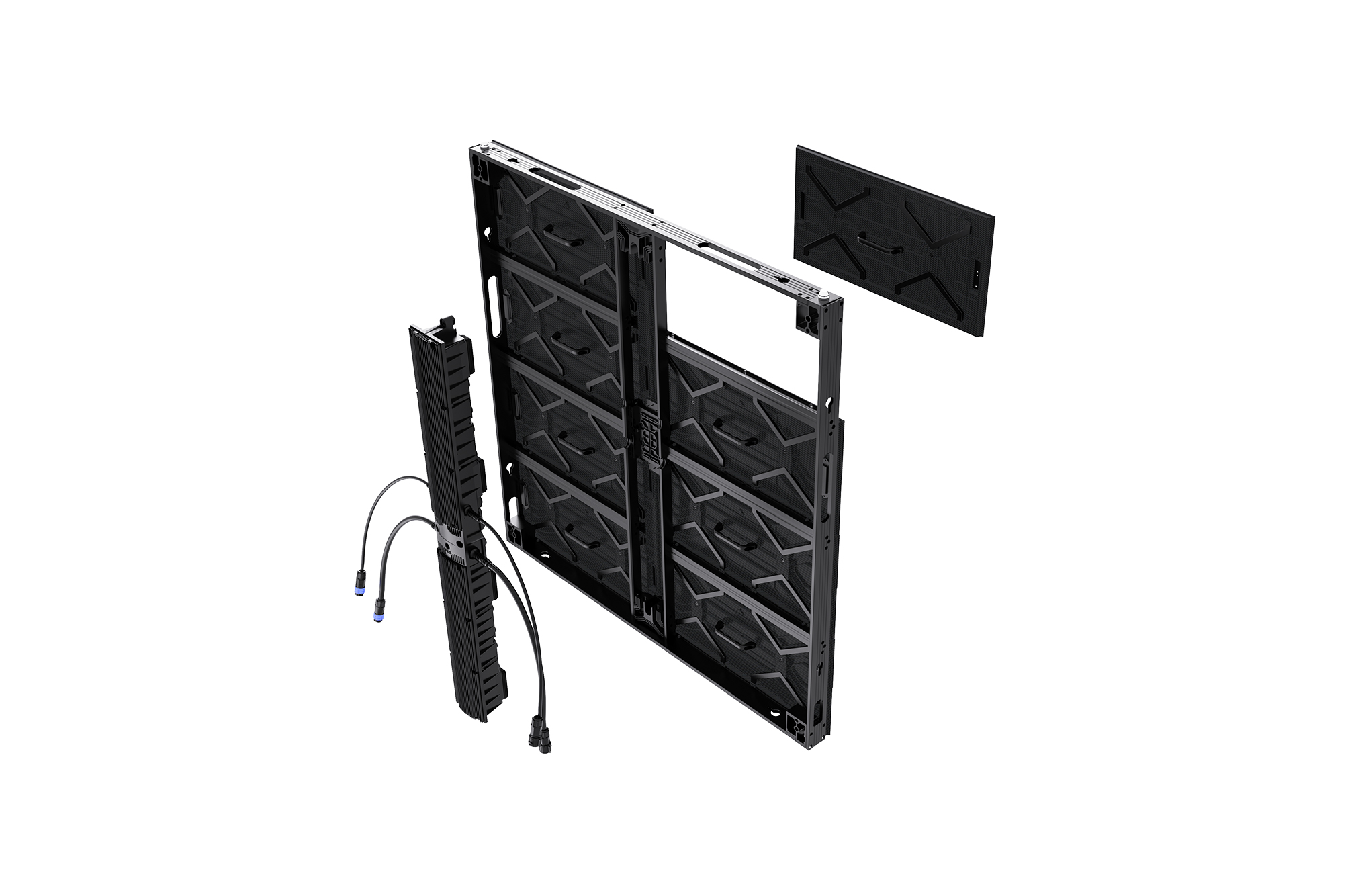

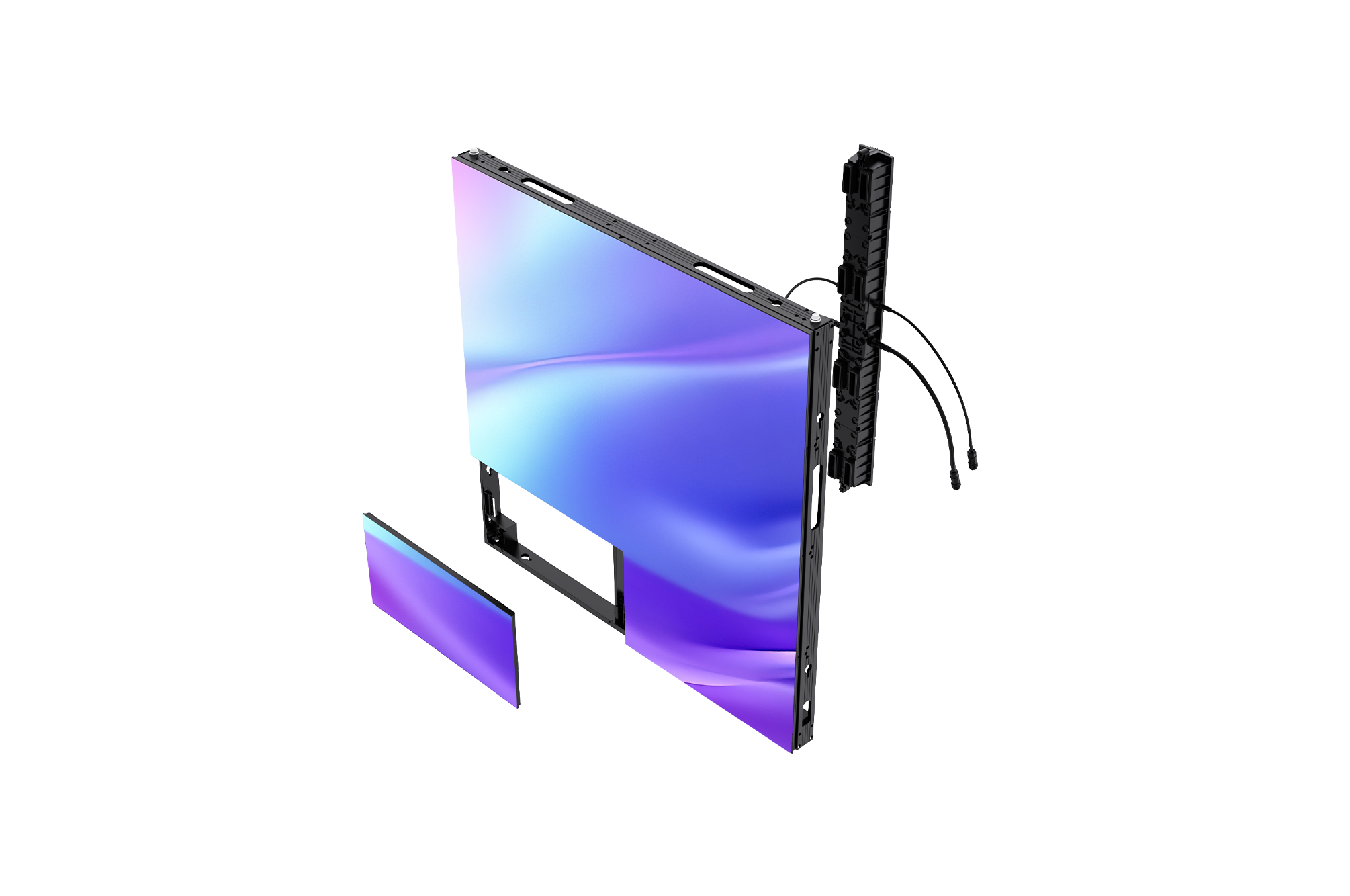

• Service Access Front and Rear

Optical Specifications:

• Max. Brightness (After Calibration) 8,000
• Color Temperature 3,200-9,300 (K)
• Visual Viewing Angle (Horizontal/Vertical) 160 × 155
• Brightness Uniformity 0.97
• Color Uniformity ±0.003 Cx,Cy
• Contrast Ratio 20,000 : 1
• Processing Depth (bit) 16 (HDR10, HDR10 Pro)

Electrical Specifications:

• Power Consumption (W/Cabinet, Max.) 630 (CA/CAC) / 158 (CB/CBC)
• Power Consumption (W/Cabinet, Avg.) 210 (CA/CAC) / 53 (CB/CBC)
• Power Consumption (W/m², Max.) 630
• Heat Dissipation (BTU/h/Cabinet, Max.) 2,150 (CA/CAC) / 539 (CB/CBC)
• Heat Dissipation (BTU/h/Cabinet, Avg.) 717 (CA/CAC) / 181 (CB/CBC)
• Heat Dissipation (BTU/h/㎡, Max.) 2,150
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) 7,680

Operation Conditions:

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) -30 to +50
• Operating Humidity 10-99% RH
• IP rating Front / Rear IP65 / IP65

Certification

• Certification CE, ETL, FCC, CB (TBD), BIS (TBD), KC (TBD), EMC Class A
• Fire Protection BS476 Part 7 Class 2, EN13501-1 Class B
• Environment RoHS, REACH
• Controller CVCA / CBCA / LCIN
• 90 Degree Corner Cut No (CA/CB) / Both Cut (CAC/CBC)
