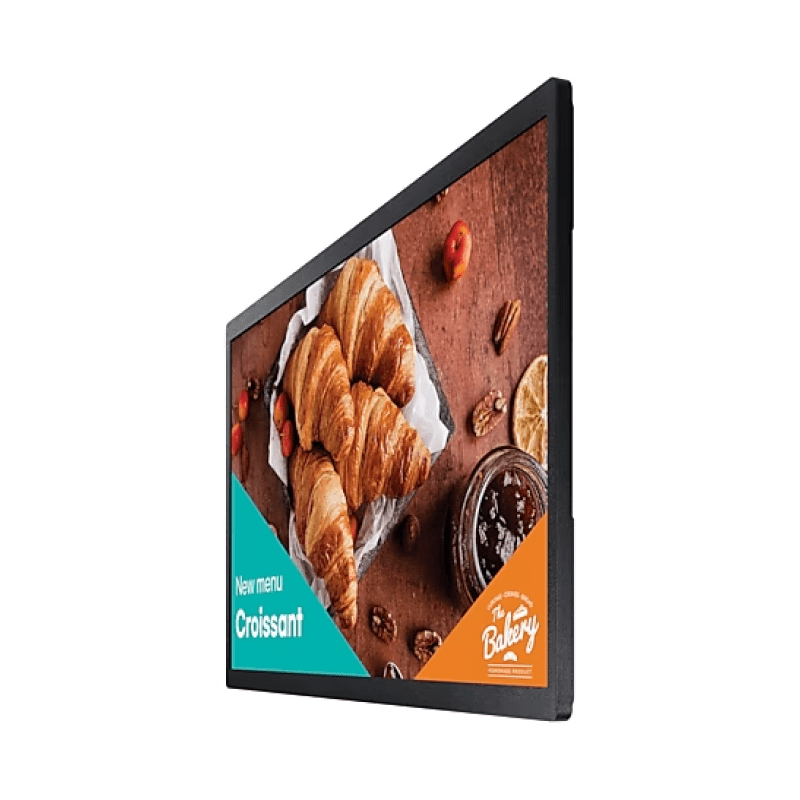

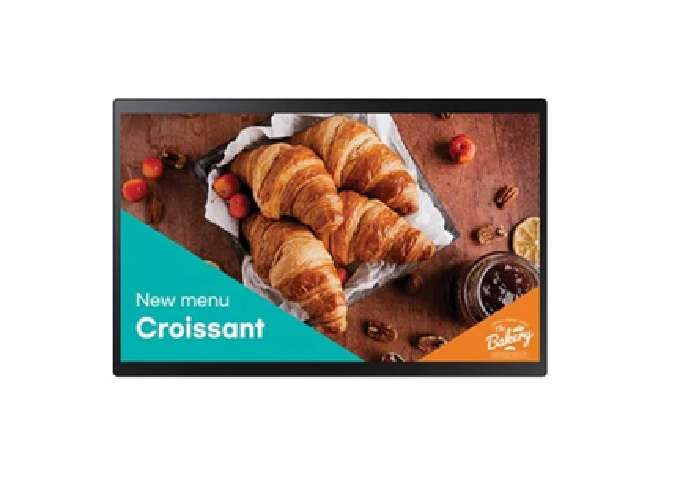

Samsung LH24QBCEBGCXXS QB24C QBC/QBB series 16/7, 350nit, MagicInfo Built- In Digital Signage

  • Diagonal Size: 23.8″
  • Panel Type: ADS
  • Resolution: 1,920 x 1,080
  • Pixel Pitch (HxV): 0.2745 x 0.2745 mm
  • Brightness (Typ): 250nit
Share
Contact Now
Overview Specification

Brightness (Typ): 250nit

Contrast Ratio: 1,000:1

Viewing Angle (H/V): 178/178

Response Time: 14ms

Color Gamut: 72(NTSC)

Power Supply: AC100-240V 50/60Hz

Power Consumption (On Mode): 38.5 W

Power Consumption (Sleep Mode): 0.5 W

Display

  • Diagonal Size: 23.8″
  • Panel Type: ADS
  • Resolution: 1,920 x 1,080
  • Pixel Pitch (HxV): 0.2745 x 0.2745 mm
  • Brightness (Typ): 250nit
  • Contrast Ratio: 1,000:1
  • Viewing Angle (H/V): 178/178
  • Response Time: 14ms
  • Color Gamut: 72(NTSC)
  • Glass Haze: 25 %
  • H-Scanning Frequency: 56~84.5KHz
  • Maximum Pixel Frequency: 148.5MHz
  • V-Scanning Frequency: 48~75Hz
  • Contrast Ratio (Dynamic): Mega
  • Operation Time Support: 16/7

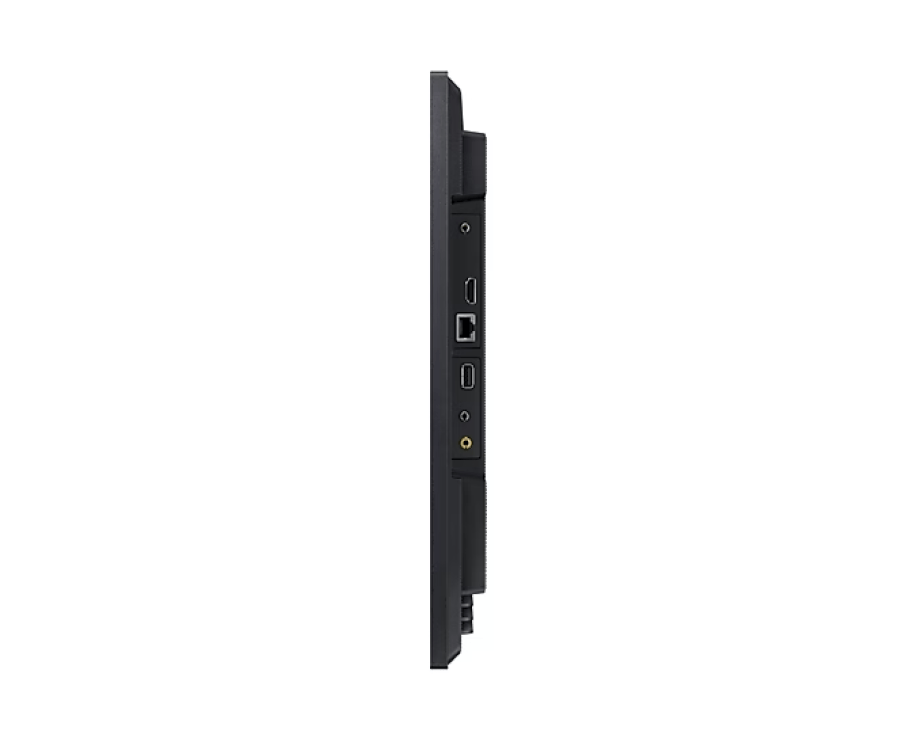

Connectivity

  • HDMI In: 1
  • DP In: No
  • Version of HDMI: 1.4
  • Version of DP: No
  • Version of HDCP: 2.2
  • USB: 1
  • IR In: Yes
  • Audio In: No
  • Audio Out: Stereo Mini Jack
  • RS232 In: Yes
  • RJ45 In: Yes
  • WiFi: Yes
  • Bluetooth: Yes

Power

  • Power Supply: AC100-240V 50/60Hz
  • Power Consumption (On Mode): 38.5 W
  • Power Consumption (Sleep Mode): 0.5 W

Dimension

  • Set Dimension (WxHxD): 547.9 x 334.4 x 31.8 mm
  • Package Dimension (WxHxD): 620 x 419 x 122 mm

Weight

  • Set Weight: 3.0 kg
  • Package Weight: 4.1 kg
