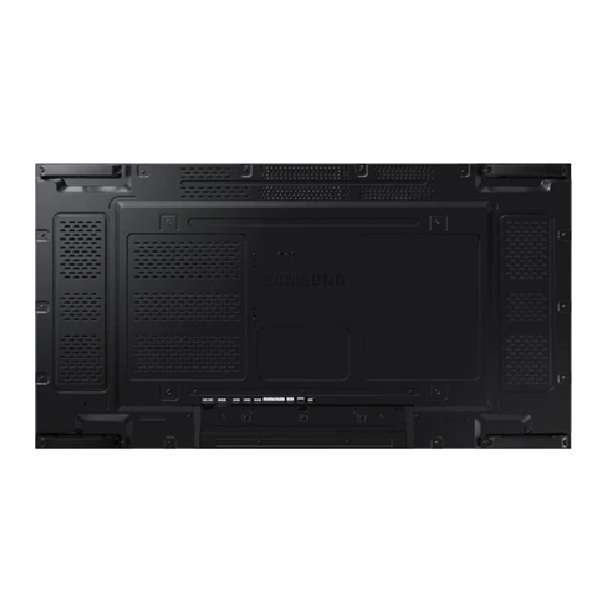

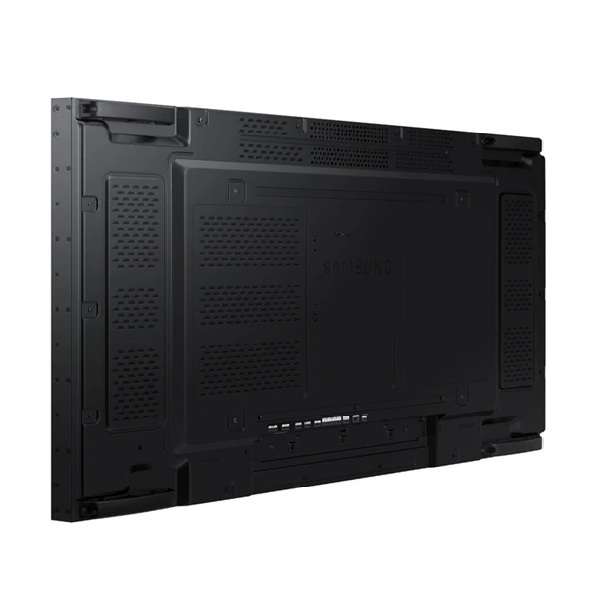

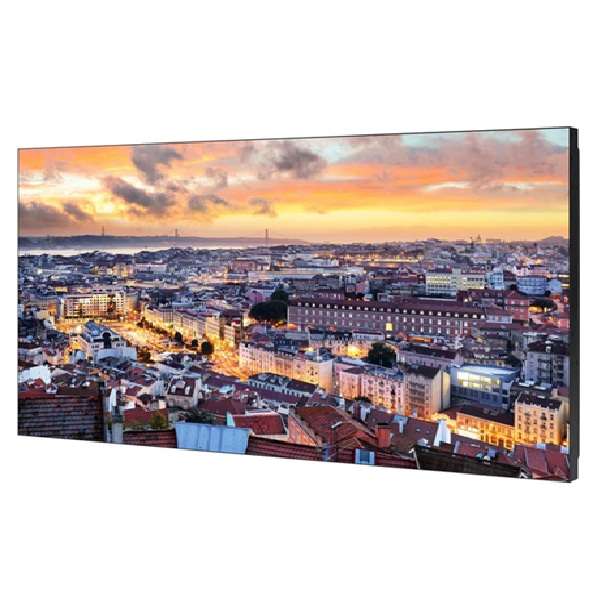

Samsung LH55VHCEBGBXXS VH55C-E 55″ Video Wall Display

Technical Specifications:

• Model: Samsung VH55C-E
• Part Number: LH55VHCEBGBXXS
• GTIN (Global Trade Item Number): 8806088729875
• Display Size: 55 inches

Display Features:

• Resolution: Full HD (1920 x 1080 pixels)
• Panel Type: Direct LED
• Brightness: 700 nits (typical)
• Refresh Rate: 60 Hz
• Contrast Ratio: 4000:1 (typical)
• Viewing Angle: 178° (horizontal/vertical)
• Response Time: 8ms (G-to-G)

Video Wall Capabilities:

Bezel Width:

• Top/Left: 0.44 mm
• Bottom/Right: 0.44 mm
• Combined Bezel-to-Bezel Gap: 0.88 mm

Color Calibration:

• Factory-calibrated for uniform brightness and color accuracy
• Advanced Color Management for seamless multi-display integration

Connectivity:

Ports:

• HDMI x 2
• DisplayPort x 1 (Input) / x 1 (Loop-Out)
• DVI-D x 1
• USB x 1
• RS232 (In/Out)
• RJ45 (LAN)
• IR (In/Out)

Daisy Chaining:

• Supports UHD content playback across multiple displays via DisplayPort 1.2

Audio:

• Internal Speakers: Not included
• Audio Out: 3.5mm stereo mini jack for external audio solutions

Power:

• Power Supply: AC 100-240V, 50/60Hz

Power Consumption:

• Typical: 220W
• Standby: < 0.5W

Design:

• Orientation: Landscape and Portrait modes
• VESA Mount Compatibility: 600 x 400 mm
• Ultra-Slim Depth: Ideal for tight video wall installations

Dimensions & Weight:

• Without Stand: 1211.6 x 682.4 x 96.3 mm (W x H x D)
• Weight: 18.5 kg

Operating Conditions:

• Operating Hours: 24/7 certified operation
• Operating Temperature: 0°C to 40°C

Additional Features:

• Video Wall Processor: Built-in for creating seamless video wall configurations
• Tizen OS: Integrated Smart Signage Platform (SSSP 5.0) for centralized content management
• Eco Features: Energy-efficient design with reduced power consumption
