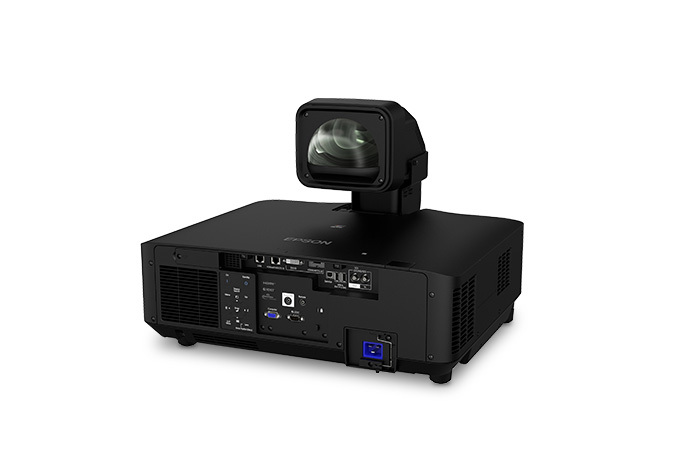

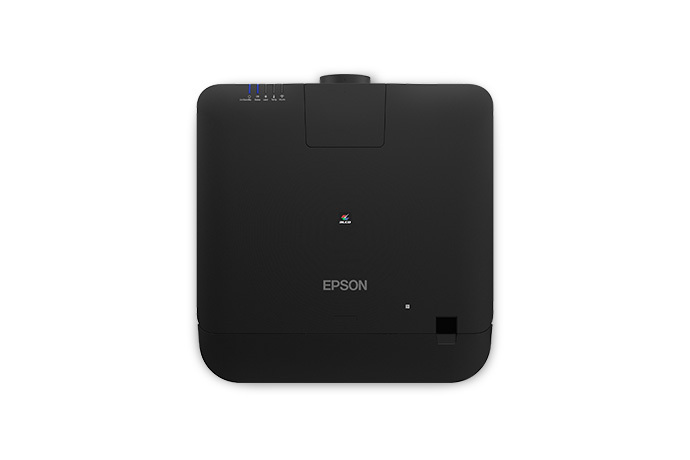

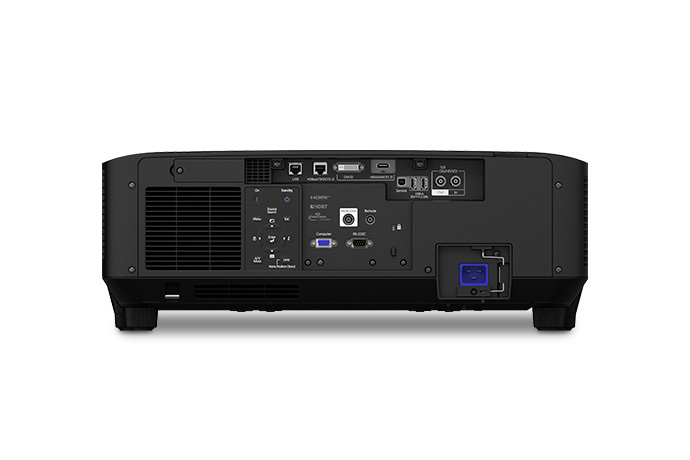

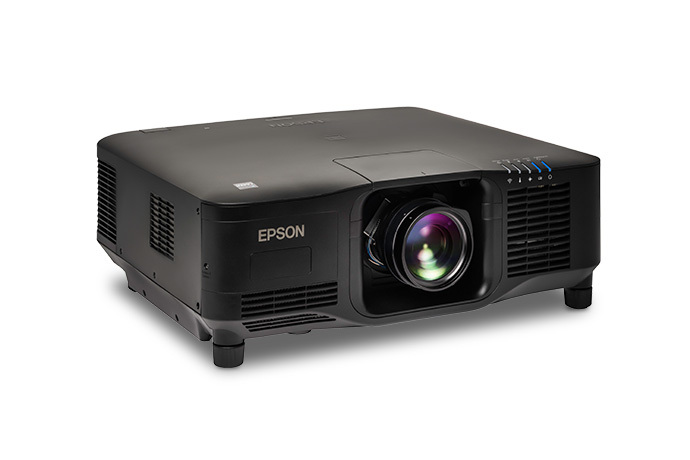

Epson EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector

Overview:

• The world’s smallest and lightest 20,000-lumen projector — produces incredibly bright images from a light and compact body
• Incredible Colour — Epson 3-chip LCD technology produces 20,000 lumens of equal white and colour brightness
• Long-lasting laser light source — 20,000-hour virtually maintenance-free laser light source
• WUXGA with 4K Enhancement — accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
• Simplified installation — 9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
• Engineered for reliability — hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation
• Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
• Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support and scene adaptive gamma correction for true-to-life images
• Fast installation — built-in NFC functionality and easy-to-use Android™ and iOS® mobile app, Epson Projector Configuration Tool (EPCT), to streamline multi-projector installations
• Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, colour calibration and screen matching
• Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera
• Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT); easily manage your installed inventory using Epson Projector Management.

Specifications:

Main Parts Specification:

• Light Source: Laser Diode
• Sealed Light Source Module: Yes, IP5X rated
• Sealed Optical Engine: Yes, IP5X rated

Brightness:

• Colour Light Output: 20,000 lumens
• White Light Output: 20,000 lumens

Projection Lens:

• Type: Powered shift/focus/zoom
• Focal Length: 14.8 mm – 17.7 mm
• Zoom Ratio: Optical zoom: 1.0 – 1.6
• F-number: 2.0 – 2.1
• Throw Ratio Range: 1.57 – 2.56

Geometric Correction:

• Vertical/Horizontal Keystone: ±45° / ±30° (Zoom: Tele) (with Standard Lens)

Operating Altitude:

• Operating Altitude: 0 – 3,048 m <0 – 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Direct Power On/Off:

• Direct Power On/Off: Yes
• Power Consumption; 1,301 W (Normal / Custom); 899 W (Quiet / Extended); 2.0 W Standby (Network Standby); 0.4 W Standby (Energy Saving)
• Power Supply Voltage 220 – 240 V ± 10%, 50/60 Hz AC

LCD:

• Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
