Epson ELPDC30 4K Document Camera

Overview:

• Realistic and Larger Image
  Sharp and clear image with 4K video resolution output, 13 mega-pixel camera, supports 10x optical and 23x digital zoom.
• Hassle-free Compatibility
  Integrates with interactive projectors and Epson Interactive Tool (EIT)
• Flexibility

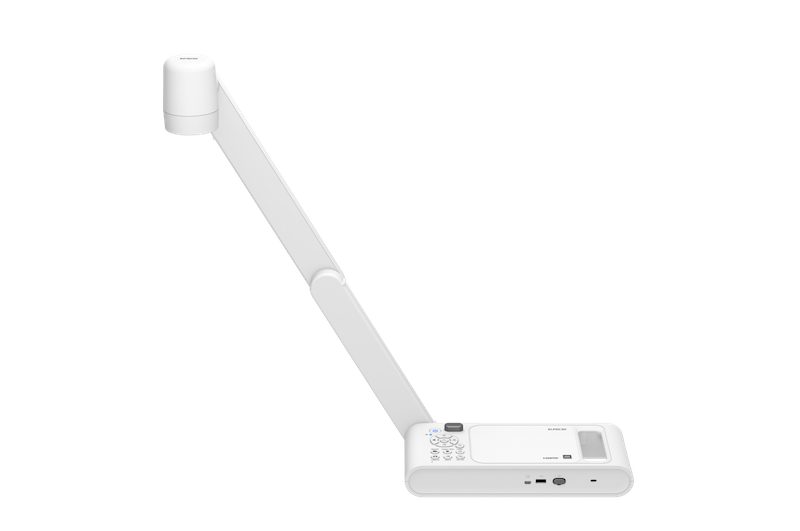

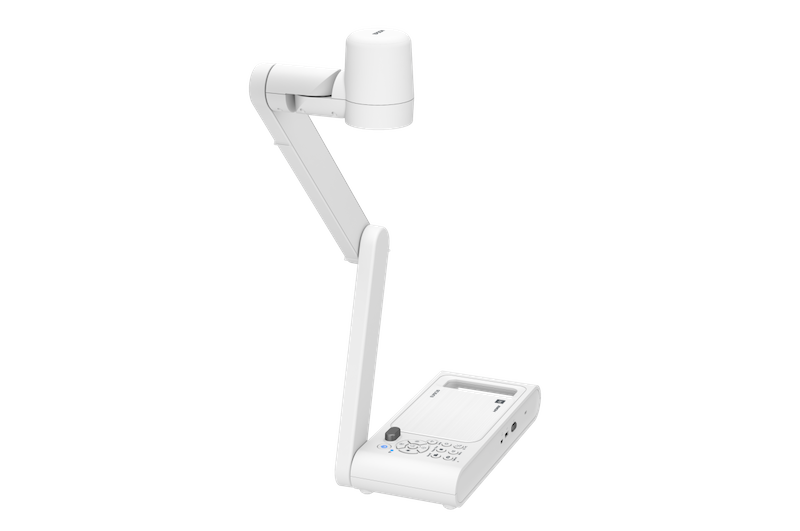

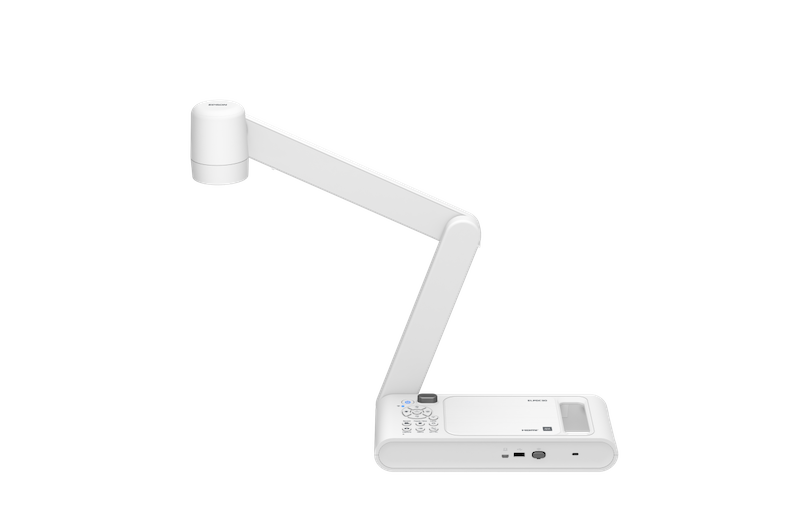

  Flexible mechanical head enables teachers to adjust the ELPDC30 easily, up to 180-degree, enhancing hybrid and online classes.
• Record and Share Lessons
  Easily record and share classroom lessons using the ELPDC30 and built-in microphone, allowing students who missed class to catch up.
• Microscope Support
  The microscope attachment allows even the smallest content to be viewed at the largest scale. Tiny particles can be magnified and displayed on the big screen for everyone to observe.

Specifications:

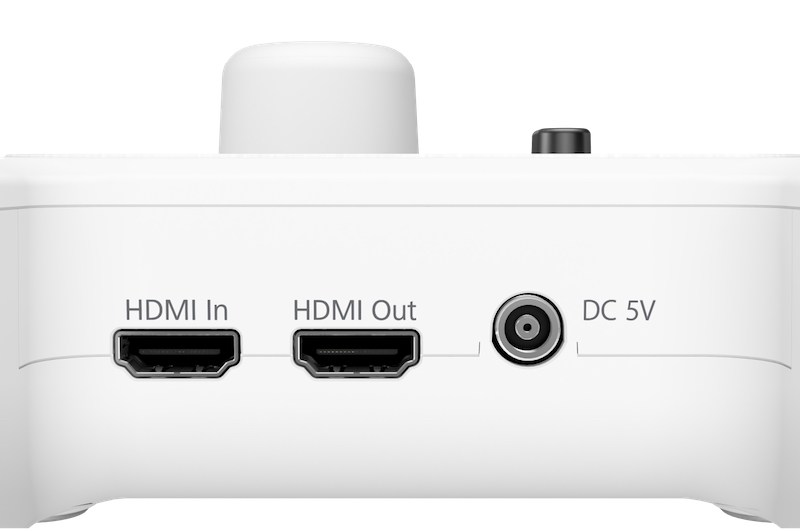

Video I/O:

• In: HDMI: 1 (Pass through)
• Out:
  • HDMI: 1 (In common with CEC control)
  • Internal Microphone: Yes (Mono)

USB I/O:

• Type A: 2 ( 1 for wireless LAN; 1 for USB Memory)
• Type mini-B: 1 (UVC Ver1.1, UAC Ver1.0 support)

General:

• Storage Temperature: -10 °C to 60 °C <14 °F to 140 °F> ( 10% – 90% humidity, No condensation )
• Operating Temperature: 5 °C to 35 °C <41 °F to 95 °F> ( 0 m / 0 ft to 2286m / 7500ft ) ( 20% – 80% humidity, No condensation )
• Start-Up Period: Less than 20 seconds
• Weight: Approx. 2.8 kg / 6.1 lbs.
• PC Applications:
  • Easy Interactive Tools Ver 5.11 or later (for Windows)
  • Easy Interactive Tools Ver 5.10 or later (for macOS)
  • Epson Connect Tool for Document Camera Ver.1.00 (Windows)
  • Epson Connect Tool for Document Camera Ver.1.00 (macOS)

Illumination System:

• Light equipment: White LED x 8 (Variable LED light)
• Light brightness control step: Off / On
• Brightness: 100 lx or above (at A3 shooting area)
• Brightness Uniformity: 45 % or above (at A3 shooting area)

Dimensions:

• Open (W x H x D): 586 x 554 x 159 mm
• Folded (W x H x D): 362x 85 x 159 mm
