Filmbase Sliding Door Transparent Film

Unprecedented Cost-Effectiveness

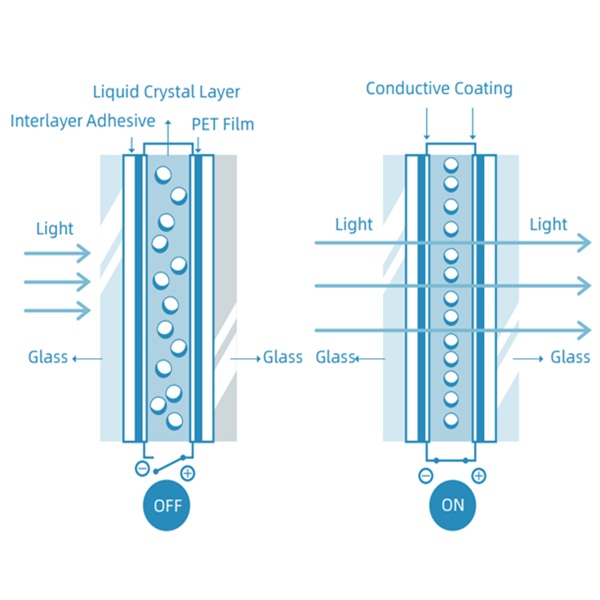

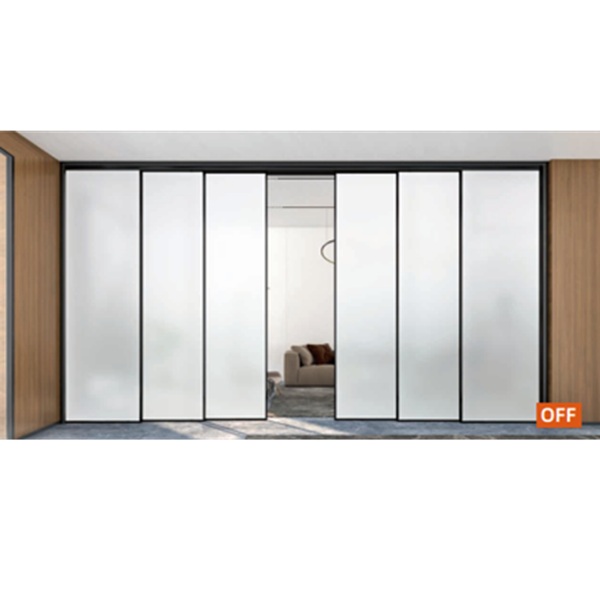

• Smart doors and windows are a brand new product from Filmbase, which perfectly combines PDLC glass with door and window systems. It can switch between transparency and privacy modes with one click, and has multiple functions such as heat insulation, sound insulation, and energy saving.

Application

• Widely used in luxury villas, balconies, lobbies, hotel rooms, office partitions, medical clinics, and commercial display spaces.

Product Parameters

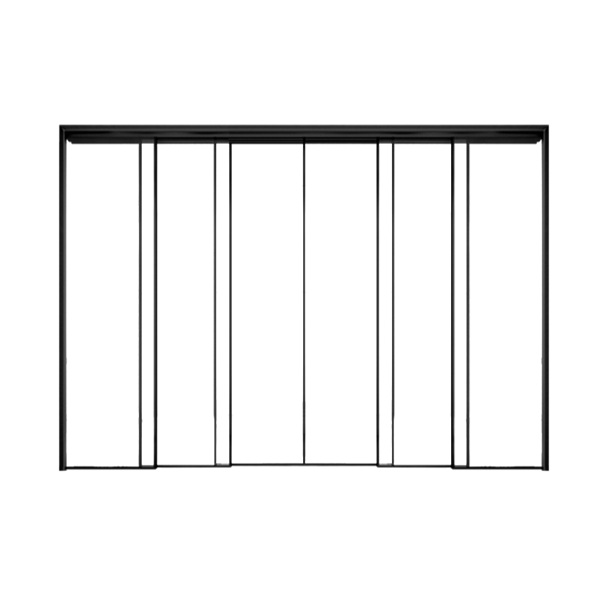

• Products: Minimalist Sliding Door

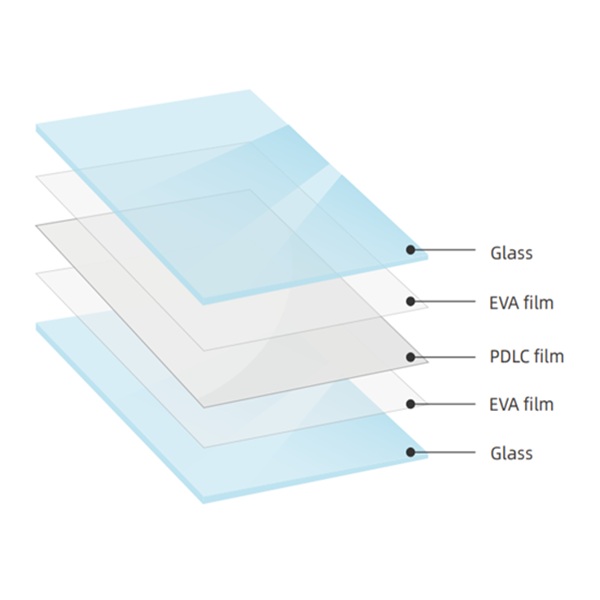

• Standard Glass: 4+4 (84 Super White with accessories)
• Door Frame Colour: Skin Black, Moonlight Gray, Mixed Glaze White
• Detailed parameters:
  • Material wall thickness: 2.0mm Single track frame width 49mm, two track frame width 95mm, three track frame 141mm.
  • Thickness of frame: 31mm, width of movable fan: 16mm, width of movable fan with micro-edge: 0.8mm,10mm, width of
    movable fan: height within 2800mm, width within 1500mm, total width unlimited, wrapping: 2.0mm. Activity fan: height limited to 2800mm or less, width 1500mm or less, total width is not limited, wrap-around edge cover wall 11mm, wrap-around edge face width 28mm, standard with two-way buffer, standard with three-rail linkage.

Optical Parameter

• Operating voltage:
  • • ON/OFF
      • ON 60V
    • Test Methods/Standards
      • Multimeter/Voltage Regulator,WGW
  • Power consumption:
    • ON/OFF
      • ON ≤ 5W/m2
    • Test Methods/Standards
      • Multi-parameter electric measuring instrument
  • Viewing angle:
    • ON/OFF
      • ON ≥ 160°
    • Test Methods/Standards
      • Visual Inspection
  • Uv blocking rate:
    • ON/OFF
      • OFF ≥ 99%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Infrared blocking rate:
    • ON/OFF
      • OFF ≥ 60%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Response time:
    • ON/OFF
      • OFF→ON ≤ 30 ms
      • ON→OFF ≤ 200 ms
    • Test Methods/Standards
      • Liquid crystal parameter integrated tester
      • Liquid crystal parameter integrated tester
  • Operating temperature
    • ON/OFF
      • – -30°C ~ 85°C
    • Test Methods/Standards
      • constant temperature and humidity testing machine
  • Life-span
    • ON/OFF
      • 100000 Hours
    • Test Methods/Standards
      • GB18910.5-2008
  • Switching times
    • ON/OFF
      • ≥ 2 million times
    • Test Methods/Standards
      • Self-made on/off tester
