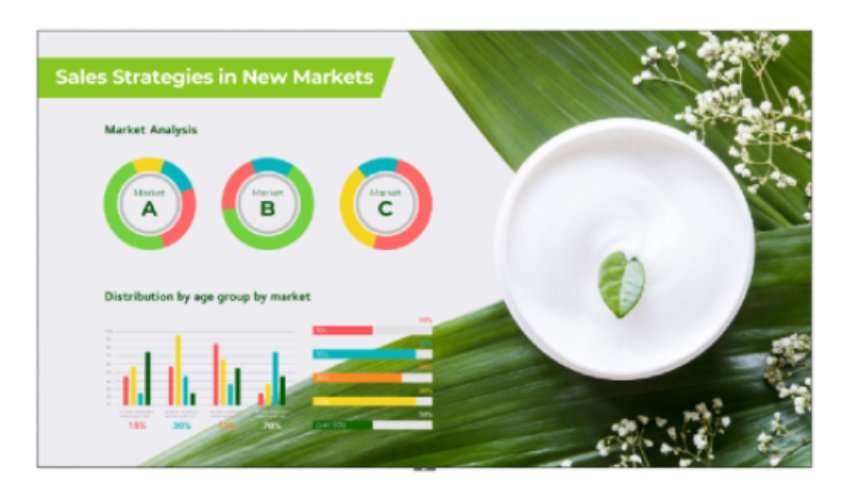

LG LAPA136-GF All-in-One LED Indoor LED Signage

Tech Spec
Physical Parameter

• Pixel Pitch (mm)    1.56
• Module Resolution (W x H)    192 × 108
• Module Dimensions (W x H, mm)    300 × 168.75
• Screen Resolution (WxH)    1,920 × 1,080
• Screen Dimension (W x H x D,mm)    3,005 × 1,692.5 X 29.95 (Thickest 59.5)
• Screen Weight (kg)    108.5
• No. of Modules per Screen (W x H)    10×10 (Total 100)
• Screen Surface Area (㎡)    5.06
• Physical Pixel Density (pixels/m²)    409,600
• Flatness of Cabinet    ±0.15
• Cabinet Material    Aluminum
• Service Access    Front

Optical Specifications

• Brightness (After Calibration)    500 (Typ.)
• Color Temperature (K)    3,200-9,300
• Visual Viewing Angle (Horizontal/Vertical)    150 / 150
• Brightness Uniformity    98%
• Color Uniformity    ±0.015 Cx, Cy
• Contrast Ratio    3,000 : 1
• Processing Depth (bit)    16 (HDR10, HDR10 Pro)

Electrical Specifications

• Power Consumption (W/Screen, Max.)    1,300
• Power Consumption (W/Screen, Avg.)    650
• Power Consumption (W/m², Max.)    260
• Heat Dissipation (BTU/h/Screen, Max.)    4,436
• Heat Dissipation (BTU/h/Screen, Avg.)    2,218
• Heat Dissipation (BTU/h/㎡, Max.)    888
• Power Supply (V)    100 to 240
• Frame Rate (Hz)    50 / 60
• Refresh Rate (Hz)    3,840
